CM Services

CM Services are managed on the navigation item CM Services in the navigation group Services. In this navigation item you can start or stop the individual services of the ConSol CM system, e.g., data indexing or DWH transfer.

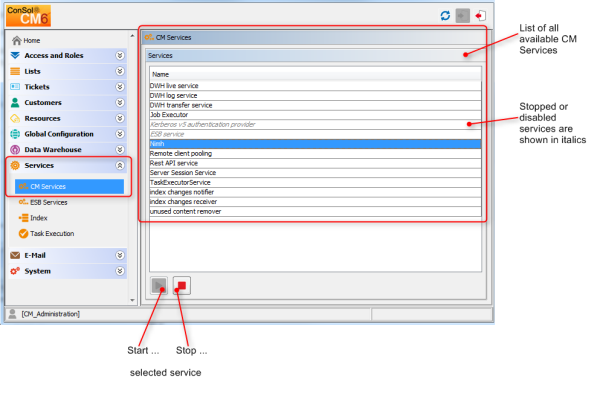

Figure 330: ConSol CM Admin Tool - Services: CM services

The status of a service should only be changed by an experienced ConSol CM consultant or by a member of the ConSol CM support team! ConSol CM core functionalities might not work when a service is not running!

List of services:

• DWH live service
  Controls just-in-time DWH update in LIVE mode.
• DWH log service
  Reads and processes CMRF/DWH log messages for the Admin Tool and stores them in the ConSol CM database. The entries are used for the log protocol in the Admin Tool. See section Data Warehouse (DWH) Management.
• DWH transfer service
  Controls DWH transfers.
• Job Executor
  Controls escalations for processes resp. workflows.
• Kerberos v5 authentication provider
  Required if Kerberos authentication is enabled.
• ESB service
  Retrieves incoming e-mails when the server is running in ESB/Mule Mail mode. This service is deactivated when NIMH is used as the incoming mail module. Please see also section ESB Services.
• NIMH
  Retrieves incoming e-mails when the server is running in NIMH mode. This service is deactivated when ESB/Mule Mail is used as the incoming mail module.
• Remote client pooling
  Controls that Web Clients get changes from the Admin Tool.
• Rest API service
  Activates or deactivates the REST (Representational State Transfer) interface.
• Server Session Service
  Checks sessions and stops sessions when the lifetime of a client or Admin Tool session has expired. See, for example system, properties admin.tool.session.check.interval and server.session.timeout.
• TaskExecutorService
  The engine for task execution in the Task Execution Framework. It comprises a main processing thread (with watchdog attached) which scans the database for tasks with the status NEW, and a second component which controls a dedicated thread pool used for tasks execution.
• Index changes notifier
  Creates JMS (Java Message Service) messages with notifications when changes occur that concern in the index.
• Index changes receiver
  Reads a JMS queue and starts update in Indexer.
• Unused content remover
  Removes attachments and comments which have been marked as deleted in the Web Client (in the protocol section of a ticket).
