Attributes for Chart Widgets

Chart widgets use the Highcharts library. All attributes are JSON objects.

The attributes which can be set comprise:

• General attributes like visibility.
• The basic configuration options of the Highcharts library. Their values ...
  • can be set using the page customization attributes.
  • can be set using the Admin Tool script which is associated with the chart widget, see section above. The attributes have to be returned as a HashMap.
  • can be left empty.

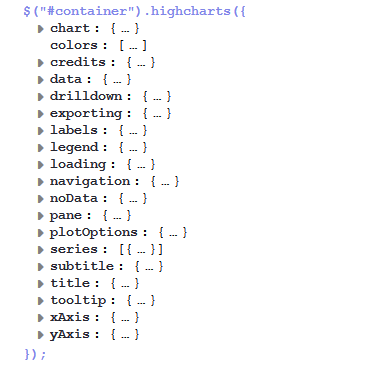

Figure 181: Highcharts configuration options

General attributes:

• localization

  Localized values, i.e., "de: {subject:'Thema', yes:'Ja'}, en: {subject:'Subject', yes:'Yes'}".

  The localization attribute can provide the localized values for all string attributes used in the widget script.

  For example (see example with graphical user interface below), you need values for the attributes title and footer, than you can set three attributes:

  • attribute: title, value _('titlestring')

  • attribute footer, value _('footerstring')

  • attribute localization which provides localized values for both. Value de:{titlestring:'Offene Tickets: ',footerstring:'Anzahl bearbeitbare Tickets'}, en:{titlestring:'Open tickets: ', footerstring:'Number of accessible tickets'}

    You can set values for attributes in the Admin Tool script, as shown in the following script for the three strings all, own, and unassigned.

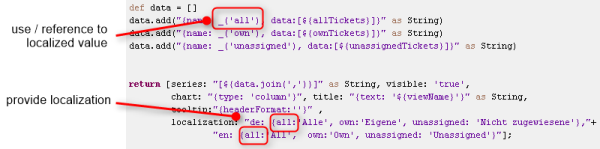

    Figure 182: Localizing page customization attributes in an Admin Tool script

    Please note that it does not matter if you provide the values for the attributes using a script or by entering the values using the graphical user interface for the Page Customization! You might also use the following way of localizing values (an example of a KPI widget):

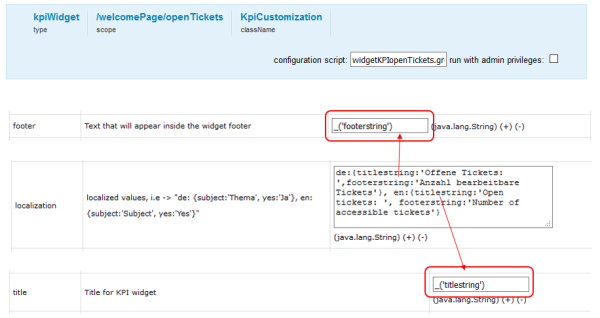

    Figure 183: Localizing string Page Customization attributes using the graphical user interface

• visible

  Defines if the widget is displayed, true or false.

Highchart-specific attributes:

• chart
  Options regarding the chart area and plot area as well as general chart options (http://api.highcharts.com/highcharts#chart). Example:

  chart = "type:'column', pltShadow:false, backgroundColor:'#4dc245', height:

  300";"items: [{html:'sometext', style: { left: '100px'; }}]"

  Code example 7: Chart object

• colors
  An array containing the default colors for the chart's series. When all colors are used, new colors are pulled from the start again. Defaults to: http://api.highcharts.com/highcharts#colors
• credits
  Highchart, by default, puts a credits label in the lower right corner of the chart. This can be changed using these options: http://api.highcharts.com/highcharts#credits
• drilldown
  Options for drill down, the concept of inspecting increasingly high resolution data through clicking on chart items like columns or pie slices (http://api.highcharts.com/highcharts#drilldown).
• exporting
  Options for the exporting module (http://api.highcharts.com/highcharts#exporting).
• global
  Global options that don't apply to each chart (http://api.highcharts.com/highcharts#global). Can only be set for a type, i.e., for chartWidget or tableWidget, not for scopes or single widgets!
• labels
  HTML labels that can be positioned anywhere in the chart area (http://api.highcharts.com/highcharts#labels).

  labels = "items: [{html:'sometext', style: { left: '100px'; }}]"

  Code example 8: Labels object

• lang
  Language object. The language object is global and it can't be set on each chart initiation (http://api.highcharts.com/highcharts#lang). Can only be set for a type, i.e., for chartWidget or tableWidget, not for scopes or single widgets!
• legend
  The legend is a box containing a symbol and name for each series item or point item in the chart (http://api.highcharts.com/highcharts#legend).
• loading
  The loading options control the appearance of the loading screen that covers the plot area on chart operations (http://api.highcharts.com/highcharts#loading)
• localization
  Localized values, i.e., "de: {subject:'Thema', yes:'Ja'}, en: {subject:'Subject', yes:'Yes'}".
• navigation
  A collection of options for buttons and menus appearing in the exporting module (http://api.highcharts.com/highcharts#navigation).
• noData
  Options for displaying a message like "No data to display" (http://api.highcharts.com/highcharts#noData).
• pane
  Applies only to polar charts and angular gauges. This configuration object holds general options for the combined X and Y axes set (http://api.highcharts.com/highcharts#pane).
• plotOptions
  The plotOptions is a wrapper object for config objects for each series type (http://api.highcharts.com/highcharts#plotOptions).
• series
  The actual series to append to the chart (http://api.highcharts.com/highcharts#series).
• subtitle
  The chart's subtitle (http://api.highcharts.com/highcharts#subtitle).
• title
  The chart's main title (http://api.highcharts.com/highcharts#title).
• tooltip
  Options for the tool tip that appears when the user's mouse hovers over a series or point (http://api.highcharts.com/highcharts#tooltip).
• visible
  Indicates whether the widget is shown.
• xAxis
  The X axis or category axis (http://api.highcharts.com/highcharts#xAxis).
• yAxis
  The Y axis or value axis (http://api.highcharts.com/highcharts#yAxis).

Example of a Chart Widget

The following example shows the widget TicketsInView and explains the logic of the associated Admin Tool script ticketsInViewDataWidget.groovy. For the entire script, please see the code block above. Here, the lines of code are set in relation to the GUI elements which they configure.

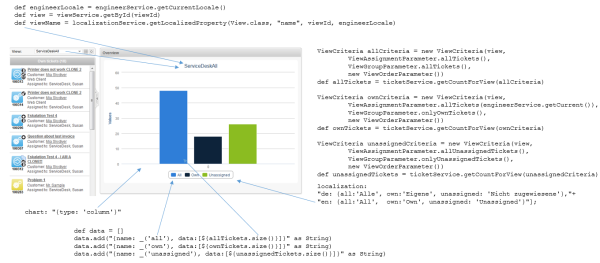

Figure 184: Chart widget example with script code
