CM/EBIA

Introduction to CM/EBIA

CM/EBIA is a ConSol CM add-on which allows to create reports directly in the Web Client. The created reports are shared with the regular users as dashboard widgets.

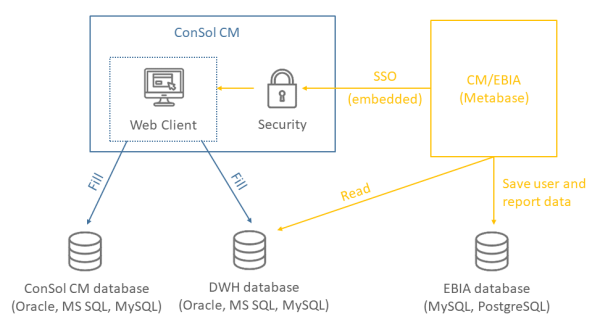

The following figure illustrates how CM/EBIA integrates with ConSol CM:

Figure 531: Architecture of ConSol CM with CM/EBIA

Concepts, terms and definitions

Concept

Other terms

Definition

CM/EBIA



Name of the ConSol CM add-on which allows to create reports directly in the Web Client

Metabase



Third-party application used in CM/EBIA

question



A chart or table which visualizes certain data

dashboard



A logical collection of questions on one page, enriched with global filtering, headlines and text

collection



A folder-like structure holding charts, dashboards and pulses. Collections can be guarded by role permissions

pulse



A message which contains one or several questions. It is sent in regular intervals to the users to inform them about current metrics.

widget



An item displayed on the ConSol CM Web Client dashboard. Widgets can contain charts and tables backed by ConSol CM’s runtime data by default. With CM/EBIA, a widget can also contain CM/EBIA questions and dashboards backed by DWH data, which allows much more powerful analytics.

Purpose and usage

The ConSol CM add-on CM/EBIA allows to create reports directly in the Web Client. CM/EBIA uses a licensed enterprise version of the third-party application Metabase, which is integrated via SSO. It can be accessed using the menu item Analytics, which is displayed for all the users with general administrator permissions or CM/EBIA administrator permissions. The link Open full application within the embedded CM/EBIA application allows to open CM/EBIA in its own tab to access the complete functionality, including administration, of CM/EBIA.

The created reports are shared with the regular users as dashboard widgets.

CM/EBIA needs to be licensed separately.

Available reports in CM/EBIA

CM/EBIA allows to define reports which analyze data from a database. There are four types of reports:

Basic tasks

Creating reports in CM/EBIA

Please proceed as follows to create a report:

  1. Click Ask a question.
  2. Choose the mode:
    • Simple question: Allows to create a question based on a single table. You can filter and group the data using the graphical user interface. Ideal for beginners.
    • Custom question: Allows to create a question based on several tables. You can join the tables and then filter and group the data using the graphical user interface.
    • Native query: Allows to create a question based on a SQL query. For experts only.
  3. Follow the instructions on the graphical user interface to create the question. You can use the following features:
    • Filter: Filter by the content of certain columns to use only a subset of the table data in your report.
    • Summarize: Use counts, sums, averages, etc. on certain table columns in your report.
    • Visualization: Choose a type of chart for the report. CM/EBIA automatically suggests appropriate types.
    • Settings: Fine-tune the chart by modifying the data, display and drill-through options.
  4. Upon saving the report, you can directly add it to a dashboard.
  5. Edit the dashboard which should be shared with the users by adding several questions, a headline and text boxes to illustrate its contents.

Once the dashboard is finished, you need to create a widget to share it with the end users.

Sharing reports as dashboard widgets

You can publish reports on the Web Client dashboard using generic widgets (see Attributes for Generic Widgets).

Use the methods of the class metabaseService to reference reports in the widget visualization script:

The following parameters are used in the above methods:

The following example shows how to use the method getDashboard() to render a CM/EBIA dashboard in the widget.

def render(String pParams) {

return """

${metabaseService.getDashboard("3", 'height="700px"')}

""" as String

}

Please see Scripts of Type Widget Visualizationfor details about widget visualization scripts in general.

Advanced tasks

Installing and setting up CM/EBIA

CM/EBIA needs to be licensed separately.

The first step to use CM/EBIA is to install and set up the Metabase application:

  1. Download the Metabase JAR file from https://downloads.metabase.com/enterprise/latest/metabase.jar.
  2. Start the Metabase application with the following start command:

    java -jar metabase.jar

    You can set the following variables:

    • -DMB_SESSION_COOKIE_SAMESITE: None, Lax or Strict. If Metabase is installed in a different domain than ConSol CM, you must use None.
    • -DMB_JETTY_PORT: The port of the Metabase application. The default port is 3000.
  3. Open the Metabase application. It runs on port 3000 by default. Create the administrator account. You can add the database connection in this step or later.
  4. Go to Enterprise, click Activate a license and enter the license key provided by ConSol.
  5. Go to Settings -> General. The value of the ConSol CM system property cmas-analytics, metabase.url needs to match the value in Site URL.
  6. Go to Authentication -> JWT. Set JWT Authentication to Enabled. Enter the URL of the Web Client in JWT Identity Provider URI, e.g. https://localhost:8080/cm-client. Paste the value in String used by the JWT signing key to the ConSol CM system property cmas-analytics, metabase.secret.key.
  7. Go to Embedding in other Applications. Enter the URL of the ConSol CM system in the field Embedding the entire Metabase app.

The next step is to add the databases. These are the databases whose data is used for creating analysis in CM/EBIA. Usually, this is the DWH database with some preconfigured cubes.

It is also possible to connect the ConSol CM production database to CM/EBIA. This is not recommended, so you must check with the ConSol CM support first.

Please proceed as follows to add a database:

  1. Open the CM/EBIA administration.
  2. Go to Databases and click Add database.
  3. Enter the information of your database and click Save.

Managing permissions

There are two regular ConSol CM permissions which grant access to the CM/EBIA application:

One of these two permissions is required to see the Analytics link and create questions and dashboards in CM/EBIA.

Regular users, e.g. the users who see the dashboard which contains the reports, are created automatically in CM/EBIA in the user group All users. By default, they get access to the complete database, i.e. they can execute SQL queries and drill into the data. If this is not desired, you need to change the permission settings within CM/EBIA:

  1. Go to the administration page and open the Permissions page.
  2. In Collection permissions, set the permission View collection in the All users column.
  3. In the Data permissions, revoke data access and SQL queries in the All users column.

The users can still see the dashboard widgets but they cannot view the underlying data or modify the dashboard contents. This configuration is recommended in most cases. You can grant EBIA full access permissions to those user who should be allowed to create questions.

Configuring the display of CM/EBIA administration

The CM/EBIA page can be configured using the page customization. The respective section is called analyticsPage. It has three attributes:

Fine-tuning CM/EBIA

The following settings, which can be made in the CM/EBIA administration, have been proven useful.

Section General:

Section Localization:

Section Data Model:
