GUI of the Admin Tool

Introduction

The following section provides an overview of the Admin Tool graphical user interface (GUI). The basic principle and all icons are explained.

In the run of this manual, we refer to the names of the GUI elements as they are explained here. In order to avoid redundancies, the icons are not always shown in each section.

Basic Principle

On the left-hand side, you see the navigation tree (1) with the navigation groups (2: extended navigation group, 4: closed navigation groups). Each navigation group contains several navigation items (3). Click the name of a group to expand the group in the tree. Click a navigation item to open the respective tab in the working area on the right-hand side.

In the bottom left corner (5), the name of the admin user who is currently logged in is displayed with all roles which are assigned to this user.

In the top right corner (6), you find the buttons to reload the Admin Tool data, to log in and to log out. The main working area (7) contains the data of the active/opened navigation item.

In the following figure, the Home tab is opened. This is the start page when you open the Admin Tool.

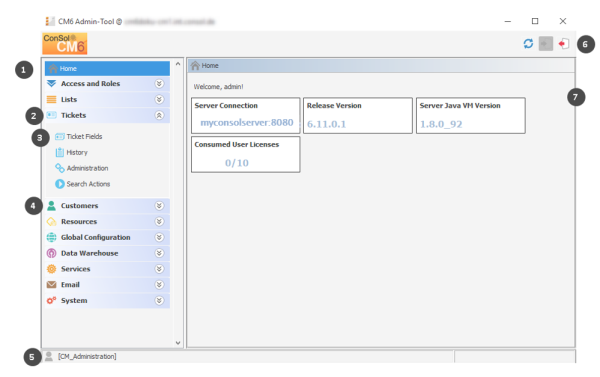

Figure 5: ConSol CM Admin Tool - GUI overview

The Home tab contains the following data:

Figure 6: ConSol CM Admin Tool - GUI overview: Navigation item open

The user interface of all other navigation items (besides the Home tab) basically show the same structure. The following example shows the tab of the navigation item Engineers.

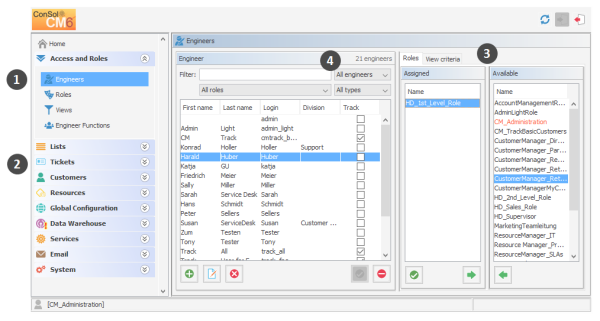

The left part of the screen shows the navigation tree (1, 2). The right part of the screen shows the settings for the active navigation item (Engineers, 1, in the example).

In the active tab, Engineers in the example, a list on the left shows the elements which can be modified. Elements can be added, edited, deleted, disabled, or enabled.

The attributes of an element are displayed on the right (3). You can move them from a list of available attributes to a list of assigned attributes either via double click or via clicking the Assign icon (example: available roles and assigned roles). Attributes can also be assigned via checkboxes or list boxes (not displayed here).

There are a couple of options to help you find the entries you want to edit more quickly:

Usually all changes performed in the Admin Tool are submitted immediately without the need to synchronize any data. However, if changes have been performed in another module and the Admin Tool has to use the new data, synchronization is required. This can be achieved by clicking the Refresh button in the icon bar.

One example for this is the deployment of a new workflow using the Process Designer. Before the new workflow can be assigned to a new queue, you have to synchronize the data in order to let the Admin Tool know that there is a new workflow. The Admin Tool loads all data from the database anew, including the new workflow. This new workflow can then be used for further operations, like assigning it to a new queue.

Inline Validation of Input Values

For all data models (customer data model, resource data model, ticket data model), the input values are validated during input in order to avoid inconsistencies concerning the names of database fields. Each value of a field has to be unique on the respective field level. See the following examples:

A field which is not valid is marked in red. It is not possible to save this field value.

We recommend to use a defined terminology and syntax for data fields. Field names should be self-explanatory and unique as far as possible. There might be exceptions from this rule due to the implementation of certain special algorithms, but in general this is what you should keep in mind as a ConSol CM administrator!

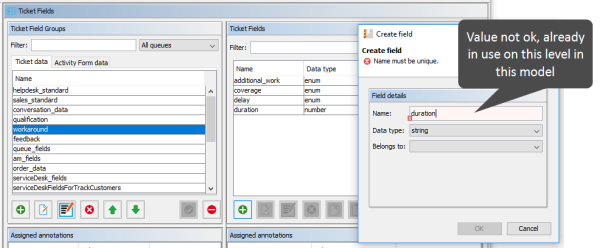

Figure 7: Inline validation of input values during set up of the resource data model. Example a.

Figure 8: Inline validation of input values during set up of the ticket data model. Example b.

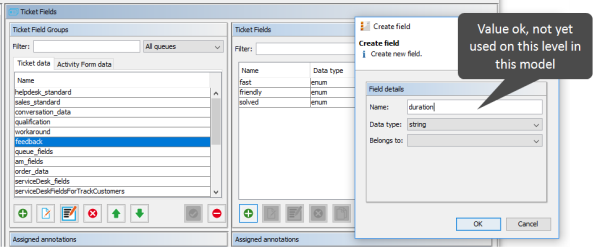

Figure 9: Inline validation of input values during set up of the ticket data model. Example c.

Icons and Other GUI Elements

You work with the following icons when you administrate a ConSol CM system. Here, the general explanations are provided, please see the respective sections for a detailed explanation of conditions and implications of applying the functionalities in the respective context.

Icon Name Meaning/Function Examples

Add / New Add (= create) a new element of the respective type. Add (create) a new engineer, a new view, a new script

Edit Edit the selected element. Usually a pop-up window is opened. Edit an engineer, a class of text, a ticket field group

Delete Delete the selected element from the database. Cannot be restored. Delete an engineer, a customer field group, a resource

Copy Copy the selected element Copy a role
Paste Available for ticket, customer and resource fields Paste the copied field into the selected (target) field group

Activate (Re-) activate an element which had been deactivated before. (Re-) activate an engineer whose account had been deactivated.

Deactivate Deactivate the selected element. Might be safer than deleting it. Elements which are in use cannot be deleted, so it can be an alternative to deactivate them. Deactivate an engineer (account), e.g. when an employee takes a sabbatical. Deactivate a customer who has canceled the contract.

Move upwards Move an element one step upwards in a list. This might have implications for the Web Client. Move a view two steps upwards in the list. The view will then be displayed in the view list in the Web Client at the new position.

Move downwards Move an element one step downwards in a list. This might have implications for the Web Client. Move a ticket field group one step downwards in the list. It will then be displayed in the ticket data section, maybe in the group section, at the new position.

Unassign Unassign/remove an element from the selected item. Unassign a role from the selected engineer.

Assign Assign an element to the selected item.

Assign a role to an engineer.

Assign a view to a role.

Annotate Open the Annotation pop-up window Used for ticket field groups, ticket fields, customer field groups, customer fields, resource field groups and resource fields

Localize / Internationalize Open the pop-up window to enter the localized / internationalized names of the technical objects. The languages which have been configured in the Admin Tool are offered. Localize the name of a ticket field.

Search Open the Search GUI. Start the ticket search.

Select all Marks all elements (often checkboxes), no database action is performed, only GUI helper Mark all permissions for a role concerning queue access

Deselect all Deselects all elements (often checkboxes), no database action is performed, only GUI helper Deselect all permissions for a role concerning queue access

Start Start the selected element (usually a service) Start a CM service

Stop Stop the selected element (usually a service) Stop a CM service

Upload Open the file browser to upload a file to the CM system Upload a script

Download / save Save a file on the file system Save a script as file in the file system.

Save and close Saves the element (usually a script) and closes the editor in edit mode. Switches to view mode. Save a script in the script section and switch to view mode of the script.

Close without saving Does not save the element (usually a script) and closes the editor in edit mode. Switches to view mode. Do not save the edited script in the script section and switch to view mode of the script.
Refresh Updates the data in the Admin Tool. Update the data in the Admin Tool after making changes in the Process Designer.

Localization of Terms Displayed in the Web Client

ConSol CM can be configured for international environments. In this way, every engineer can work with the country-specific language in the web browser. The following principles are important concerning localization/internationalization:

The CM administrator configures the languages which will be available in the entire system. This is done using the Admin Tool and is explained in section Languages.

The languages which are configured as available languages in the Admin Tool can then be applied for all terms which have been configured for the CM system, e.g., the terms for ticket fields. Using the Process Designer, the labels for workflow activities can also be localized. This is explained in the ConSol CM Process Designer Manual. Thus, there are two different categories of terms in the Web Client:

  1. Standard CM terms/labels which cannot be modified using the Admin Tool or Process Designer (however, they might have been adapted to your system in case a customer specific software has been developed). Terms like the labels for the group headers in the ticket list (e.g., Own tickets, Workgroup tickets, Unassigned tickets) or the labels Favorites and Workspace belong to this category.
    For these terms/labels, two standard languages are available: English and German. English is also the overall standard language. You cannot modify standard CM terms! They are available in English and in German and represent a fixed set of terms and labels.
  2. System-specific terms, i.e., terms/labels which can be localized using the Admin Tool or the Process Designer. Localization using the Admin Tool will be explained in the following section. For an explanation of localization using the Process Designer, please refer to the ConSol CM Process Designer Manual.
    For system-specific fields, the localized terms/labels have to be entered manually for each language.

In the Web Clients (CM Web Client and CM/Track), the labels are displayed according to the browser locale which has been set by the engineer or the customer.

The Different Modes of Localizing Terms and Labels Using the Admin Tool

General Principle of Localization in CM

Depending on the location in the Admin Tool, there are different GUI elements which are used to set localized values. However, the general principle is valid for all those locations. The general principle works as follows (explained for the example of a ticket field).

Technical name:

Each field or object has a technical name, e.g. the ticket field priority. This name is set when the field or object is created and should not be changed afterward because it might be used in Admin Tool or workflow scripts which would fail when the name has been modified. CM throws a warning message and blocks the action when someone tries to modify a technical field or object name. Only when the field or object is new and has not been used yet, it is possible to change the technical name.

Localized names:

For each field, field group or object a localized name can be set for each of the languages which have been configured for the CM system (using the settings in the navigation group Global Configuration, navigation item Languages).

For example, the ticket field with the technical name priority is named HD Priority in English and HD Priorität in German.

In the web clients (CM Web Client and CM/Track), the labels of the fields and objects are displayed according to the browser locale of the engineer or customer. Some variants are possible:

  1. Variant #1:
    The language of the browser locale has been configured and all labels and terms are displayed in this language. For example, the language French has been added in the Admin Tool, all system-specific terms have been localized manually for French (using the Admin Tool and the Process Designer). Then all system-specific terms are displayed in French, e.g., the workflow activities, the names of the ticket fields, and the names of the views.
  2. Variant #2:
    The language of the browser locale has been configured, but not all labels and terms are displayed in this language. For example, the language French has been added in the Admin Tool, but only some system-specific terms have been localized manually for French (using the Admin Tool and the Process Designer). Then the localized system-specific terms are displayed in French, e.g., the workflow activities, the names of the ticket fields, and the names of the views. All non-localized terms (i.e. where the field for the localized term is empty) are displayed in the language which has been configured as default in the Languages settings.
  3. Variant #3:
    The language of the browser locale has not been configured. For example, the localized terms and labels have been set for English, German and French, but the engineer has set the browser locale to ES (Spanish). In this case, all labels and terms are displayed in the language which has been configured as default in the Languages settings.

Localization of Data Fields

The localized terms for data fields are written directly into the Labels section in the Admin Tool. This applies to

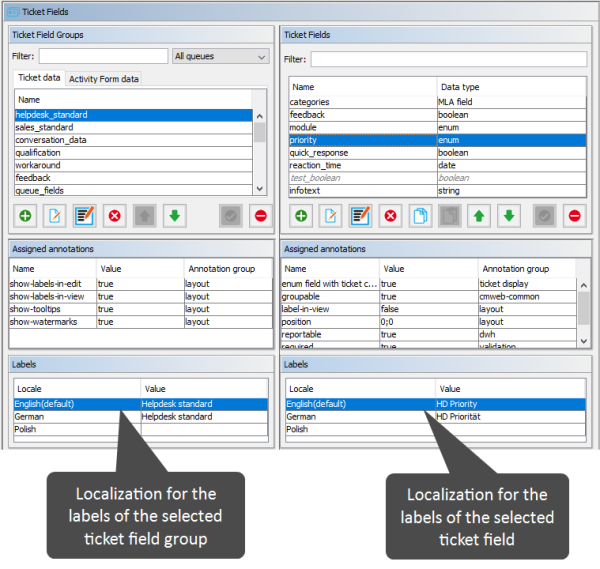

Figure 10: ConSol CM Admin Tool - Localization of ticket fields

In order to change the value of a field, click into the field and write the new term. Press ENTER to save the new value.

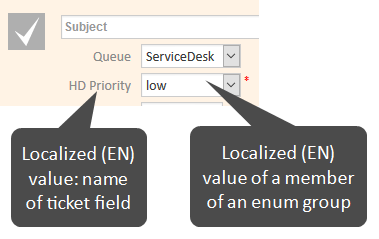

In the Web Client, the ticket field shown in the figure above is displayed as follows (in English and German):

Figure 11: ConSol CM Web Client - Ticket field displayed in English browser locale

Figure 12: ConSol CM Web Client - Ticket field displayed in German browser locale

Localization of Objects in General, Type 1

A great number of objects can be localized using the Localize / Internationalize (globe icon) button which opens a pop-up window with the localization configuration.

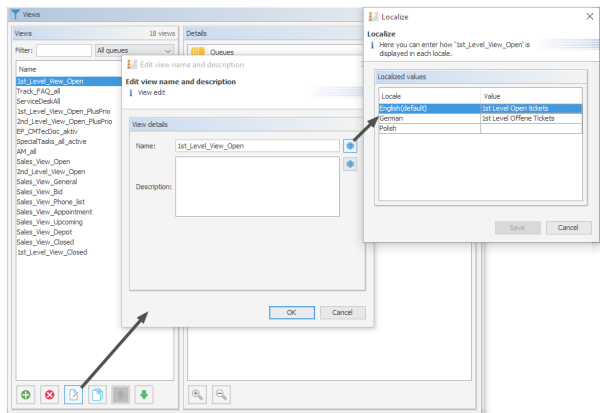

Figure 13: ConSol CM Admin Tool - Localization of objects, example: name of a view

In order to change the value of a field, click into the field and write the new term. Press ENTER to save the new value.

Localization of Objects in General, Type 2

Some objects are localized using the localization table within the pop-up window which is used to edit the object.

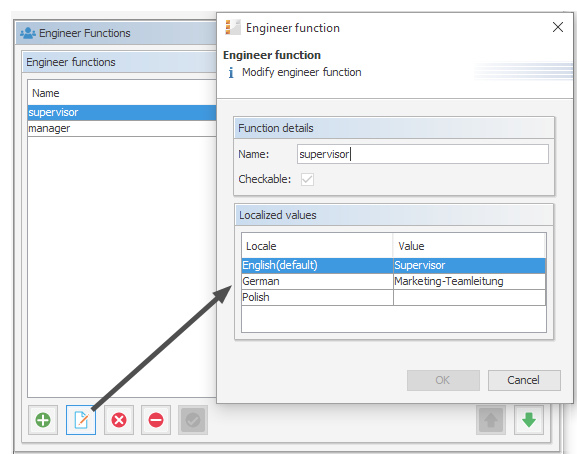

Figure 14: ConSol CM Admin Tool - Localization of objects, example: name of an engineer function

Using UTF-8 Symbols in Localized Fields

In order to have graphical symbols displayed in text fields, you can use UTF-8 symbols. This works for all localized fields, e.g., string fields, queue names, or enums. Just copy the UTF-8 symbol from a unicode table page and paste it into the text field in the Admin Tool.

Example:

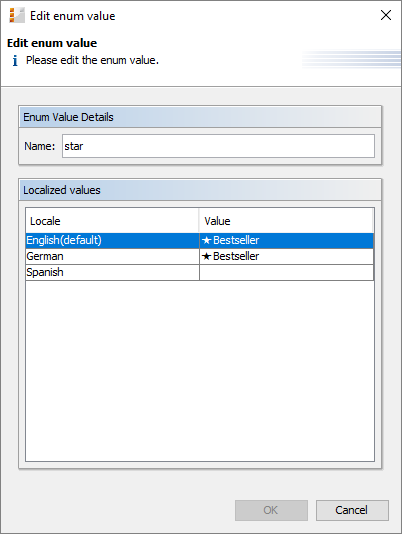

Figure 15: UTF-8 symbol in a localized field in the Admin Tool

Figure 16: Display of UTF-8 graphical symbols in the Web Client, here: enum

In case you work with a MySQL database, use the following settings to work with the UTF-8 graphical symbols:

  • CHARACTER SET = utf8mb4
  • COLLATE = utf8mb4_unicode_ci

Localization of Labels

Several terms in the Web Client can be localized using labels. This is explained in section Labels.
