CM/Resource Pool - Admin Tool Elements

You will have to work with several sections of the Admin Tool to configure CM/Resource Pool:

• Navigation group Access and Roles
  To assign Resource Pool permissions to roles
• Navigation group Lists
  If you use MLAs and/or enums (sorted lists) in resource fields
• Navigation group Resources (see following figure)

  • Data Models
    Definition of the resource model, including resource relations
  • Relations Overview
    Contains a list of all resource relations, read-only mode, no definitions/configurations here
  • Actions
    Definition of resource actions
• Navigation group Global Configuration
  • Labels
    In case you would like to modify labels of Resource Pool elements in the Web Client or define your own labels used in scripts
• Navigation group System
  • Scripts and Templates
    • Scripts for resource actions
    • Templates for the display of resource data in the Web Client
  • License
    To activate a new license for CM version 6.10 with CM/Resource Pool

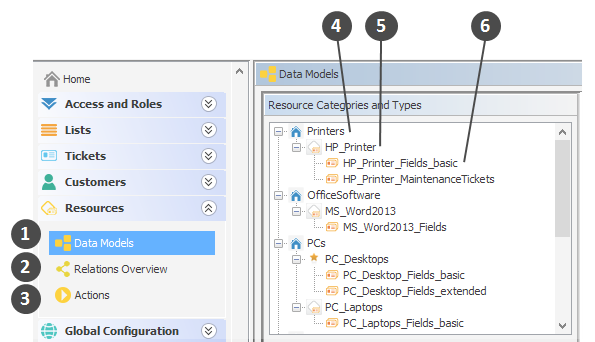

Figure 448: ConSol CM Admin Tool - Resources, Data Models: Main elements for the configuration of CM/Resource Pool

The main elements of CM/Resource Pool are:

• Navigation item Data Models to define resources and resource relations (1)
• Navigation item Relations Overview to display a relations list (2)
• Navigation item Actions to manage resource actions (3)
• Resource category (4)
• Resource type (5)
• Resource field group (6)

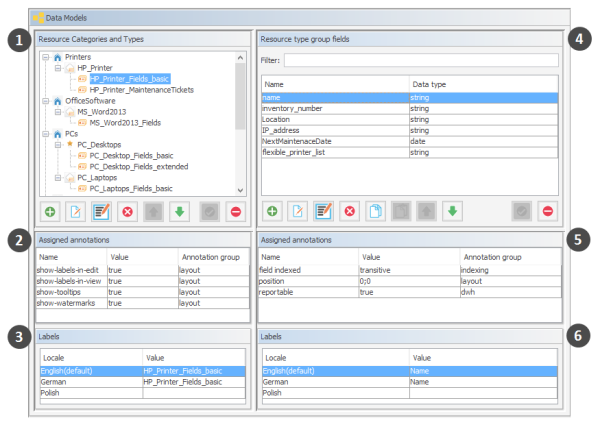

Figure 449: ConSol CM Admin Tool - Resources, Data Models: CM/Resource Pool configuration

The Data Models screen consists of six sections:

• Resource data models (1)
• Annotations for the selected resource field group (2)
• Labels for the selected resource field group (3), i.e. the localized values of the name of the selected resource field group
• Resource fields (4) of the selected resource field group
• Annotations for the selected resource field (5)
• Labels of the selected for resource field (6), i.e. the localized values of the name of the selected resource field
