acimSection

This type allows to configure the case history. The case history contains entries which log each action done for the case. Each entry has a timestamp. One or several history entries form a history group, which is indicated by a horizontal line and a date displayed on the left.

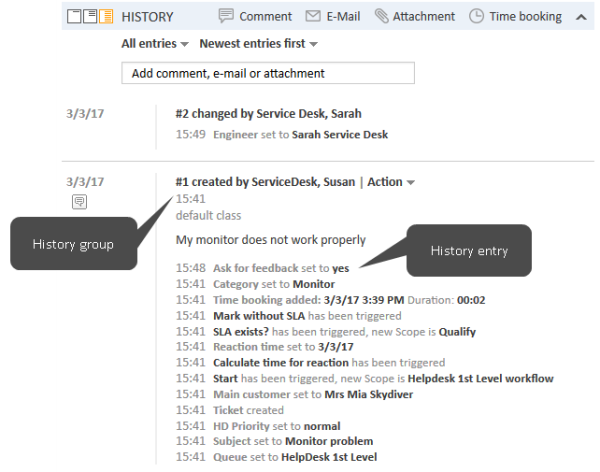

Figure 35: ConSol CM Web Client - History group and entry

Attributes:

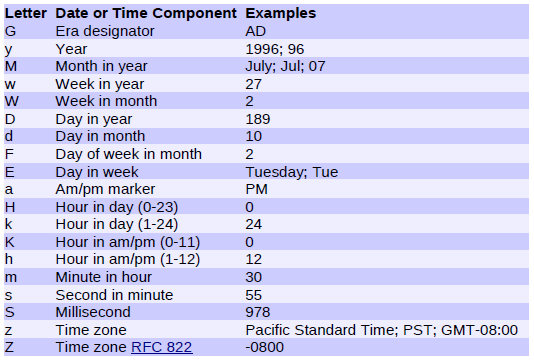

• acimGroupActionEntryDateFormat
  Date format for a history group containing only entries referring to activity execution and automatic actions, i.e. a group without comment, email or attachment entries. The format must be defined for each level of detail.


  Syntax: firstLevel|secondLevel|thirdLevel


  The default value is: dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm

• acimGroupTextEntryDateFormat
  Date format for a history group containing a comment, email or attachment entry. The format must be defined for each level of detail.

  Syntax: firstLevel|secondLevel|thirdLevel

  The default value is: dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm

• acimItemActionEntryDateFormat
  Date format for a history entry referring to activity execution and an automatic action. The format must be defined for each level of detail.

  Syntax: firstLevel|secondLevel|thirdLevel

  The default value is: dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm

• acimItemTextEntryDateFormat
  Date format for a comment, email or attachment entry. The format must be defined for each level of detail.

  Syntax: firstLevel|secondLevel|thirdLevel

  The default value is: dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm|dd.MM.yyyy HH.mm

• allowedTimeToEditTextEntry
  Period in minutes during which the user can edit his own comments. The default value is 120 (2 hours). Set the value to 0 to deactivate the comment editing functionality.

• appendOrReplaceOnClone
  Only relevant if showCloneOption is set to true. If the editor is opened and already contains some text, you can append or replace its content when selecting the Clone option of another entry simultaneously. Possible values are append, replace. Default is append.

• attachmentDeletionAllowedIncomingEmail
  Determines whether attachments from incoming emails can be deleted. If this attribute is set to true, the context menu of the attachment contains the Remove option. Default false.

• attachmentDeletionAllowedManuallyUploaded
  Determines whether attachments which have been manually uploaded can be deleted. If this attribute is set to true, the context menu of the attachment contains the Remove option. Default true.

• attachmentDeletionAllowedOutgoingEmail
  Determines whether attachments from outgoing emails can be deleted. If this attribute is set to true, the context menu of the attachment contains the Remove option. Default false.

• basicViewCharactersLimit
  Defines the maximum number of characters which are displayed in the case history for text entries in the basic view if this level is defined as Basic (short) in the text class which is applied to the entry. The text is cut off after the maximum number of characters defined and formatting is removed. The header information of emails is not shown. This allows to provide a concise information using little space. The default value is 150.

• emailFeature
  Determines if it is possible to write emails from the Web Client. The default value is true.

• extendedViewCharactersLimit
  Defines the maximum number of characters which are displayed in the case history for text entries in the extended view if this level is defined as Extended (short) in the text class which is applied to the entry. The default value is 350.

• headHistoryElementsCount
  Also called lazy loading. The number of groups in the case history that are loaded from the top of the history. The default number is 0 (= lazy loading switched off). If the head and tail elements count is 0, the whole history is loaded at once.

  The attribute must be configured in the type not in a scope.

• mailToFixedMail
  Email address which is inserted by default into the To field of the email editor used when the attribute mailToSelection is set to fixed.


• mailToSelection
  Email address which is inserted into the To field if the email editor. Possible options:


  • contact
    The email address of the main contact is inserted into the To field when the email editor is opened. This is the default option.

  • contacts
    The email addresses of the main contact and all additional contacts are inserted into the To field when the email editor is opened.

  • engineer
    The email address of the user is inserted into the To field when the email editor is opened.

  • fixed
    The email address configured in the mailToFixedMail attribute is inserted into the To field when the email editor is opened..

  • none
    The To field is empty when the email editor is opened.

• recordLastUsedAcimTab
  Determines whether the last used tab is remembered, i.e. when you open the editor again, the tab (comment / email / attachment / time booking) which you worked in when before you closed the editor is opened again.

• removeContentOnTabSwitch
  Determines whether the content of the editor is cleared when you switch to another tab. The default value is false, i.e. when you switch the tab, the text you have typed remains in the editor panel.

• showCloneOption
  Determines whether it is possible to duplicate comments or emails (Clone option in the context menu).

• tailHistoryElementsCount
  Also called lazy loading . The number of groups in the case history that are loaded from the bottom of the history. The default number is 0 (= lazy loading switched off). If the head and tail elements count is 0, the whole history is loaded at once.

  The attribute must be configured in the type not in a scope.

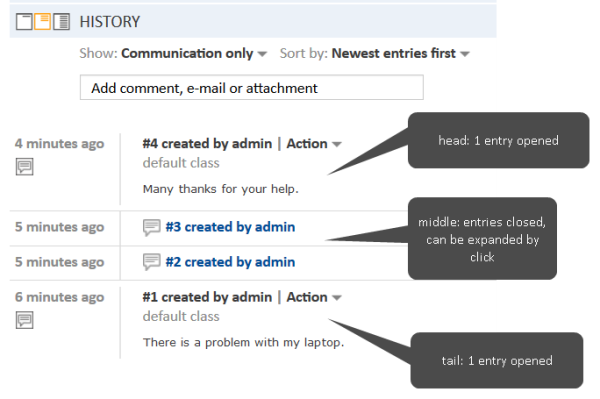

  Figure 37: ConSol CM Web Client - headHistoryElementsCount=1 and tailHistoryElementsCount=1

• timeBookingFeature
  Determines whether the time booking feature (tab Time booking) is available in the case history. Default is true.

  The visibility of the time booking section in the user profile is configured in the type section, subscope timeBookingFeature of the user profile page.
