Jump-out and Jump-in Nodes

Introduction

A process often consists of one or more sub-processes, e.g. in an IT help desk, there might be a first level team who accepts and qualifies the tickets, a second level team who can solve several problems, and some third level team with specialists. When you want to represent this process, you have to build a workflow for each special sub-process (1st level, 2nd level, 3rd level). Then the sub-processes have to be linked to make sure the handover of the ticket from one team to the next uses the correct way in the process.

A ticket might pass from the first level to the second level, on to a third level team, back to the second level team with another question, back to another third level team, and then back to the first level team who contacts the customer. So we need connections from one sub-process to the next one, i.e. nodes where a ticket leaves the present workflow, a jump-out node, and the counterpart in the following workflow, the jump-in node. If the ticket should start at the START node of the new process, no jump-in node is required.

In the Process Designer, jump-out and jump-in nodes are inserted into the workflow by drag-and-drop from the palette and are linked to other workflow elements depending on the desired process.

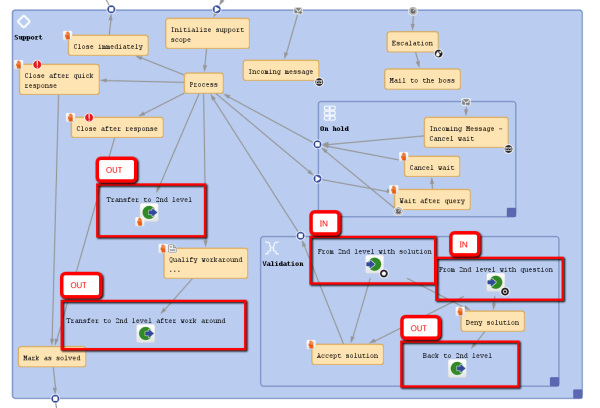

Figure 106: ConSol CM Process Designer - Example for jump-out and jump-in nodes

Jump-out Nodes

A jump-out node defines a position where the ticket is to leave the (sub-)process and to enter the next (sub-)process.

Figure 107: ConSol CM Process Designer - Jump-out node

Properties of a Jump-out Node

For a jump-out node the following properties can be defined:

• name
  String. Mandatory. Technical object name.
• label
  String. Optional. Localized name (if not set, the technical name is used) that will be displayed in the Web Client GUI.
• description
  String. Optional. It will be displayed as mouse-over in the Web Client GUI.
• sort index
  Selection. Mandatory. Defines the order of the activities in the Web Client GUI.
• jump out node type
  Selection. Mandatory. Either Automatic or Manual has to be selected. In case it is a manual node, the node is marked with the hand/manual icon in the Process Designer GUI.
• script
  Optional. A script can be defined which is executed when the ticket enters the node.
• target queue name
  Selection. Mandatory. Select the queue name to which the ticket should be passed.
• target jump in node
  Selection. Optional. Select the jump-in node from the drop-down menu. All jump-in nodes from the workflow of the selected queue are offered. If no jump-in node is selected, the ticket will enter the other process, i.e. the target queue, at the START node.


  When you start designing workflows you might have a chicken-and-egg problem when you start to define jump-out and jump-in nodes, because obviously you will have to start with one workflow when the other workflow is not yet present. We recommend to work with dummy queues without specific jump-in node. Then add the correct target queue name and the name of the jump-in node later.

• history visibility
  Selection. See section history visibility
• disable auto update
  Boolean. See section disable autoupdate

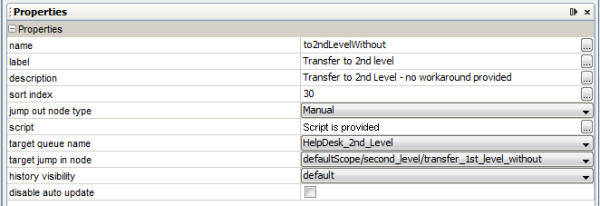

Figure 108: ConSol CM Process Designer - Jump-out node: Properties editor

Jump-in Nodes

A jump-in node is a node which defines the position where a ticket from another process (queue) can enter a queue with the current workflow. All jump-in nodes of a workflow are offered as target jump-in nodes when the queue with the respective workflow has been selected as target queue for a jump-out node.

Figure 109: ConSol CM Process Designer - Jump-in node

Properties of a Jump-in Node

For a jump-in node the following properties can be defined:

• name
  String. Mandatory. Technical object name.
• label
  String. Optional. Localized name (if not set, the technical name is used) that will be displayed in the Web Client GUI.
• description
  String. Optional. It will be displayed as mouse-over in the Web Client GUI.
• script
  Optional. A script can be defined which is executed when the ticket enters the node.
• overlay
  Selection. Optional. Click into the orange space to load a standard ConSol CM overlay or use the file explorer (...) for an upload of another icon from the file system.
• overlay range
  Selection. Only displayed when overlay has been set.

  • Activity
    The overlay is attached only as long as the ticket stands behind the activity. As soon as the next activity is executed, the overlay is deleted from the ticket icon.
  • Scope
    The overlay is deleted when the ticket leaves the scope.
  • Process
    Once the overlay has been attached to the ticket icon, it stays there for the rest of the process.
  • Next overlay
    The overlay is attached to the ticket icon as long as no new overlay appears. In that case, only the new one is attached, the old one is deleted.
• history visibility
  Selection. See section history visibility.
• disable auto update
  Boolean. See section disable auto update.

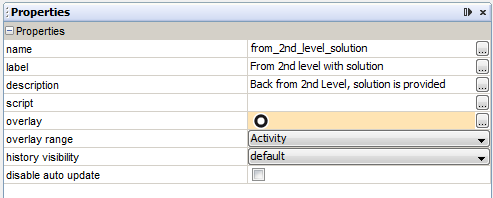

Figure 110: ConSol CM Process Designer - Jump-in node: Properties editor
