Working with Customer Relations

Introduction

Since version 6.9.0, ConSol CM offers customer relations. In older versions, this feature is not available!

To be able to work with customer relations, you have to have a profound knowledge of the FlexCDM, the ConSol CM Flexible Customer Model. Please refer to the ConSol CM Administrator Manual for a detailed introduction. Since a customer is represented by the class Unit in CM programming, the terms customer relation and unit relation are synonyms.

Three objects are essential:

Object	Java class	Admin Tool description	Explanation
Customer	Unit	<none>	The general description or the general object which represents a customer, i.e. some person (contact) or company or another object on company or contact level which is registered in the CM database
Company	Unit	Customer object of type company	An object on company level (i.e. the highest level in the customer model). This can be a real company or this can be a machine or another object which represents the level. An object on the company level can be the parent level for an object on the contact level. From a logical point of view, a company can have several contacts.
Contact	Unit	Customer object of type contact	An object on contact level (i.e. the lowest level in the customer model). This can be a real person or another object which represents the level. An object on the contact level can be a stand-alone object (in a one-level customer model) or can belong to a company level object. From a logical point of view, a contact can belong to none or exactly one company.

Keep in mind that the main customer of a ticket can be a contact or a company! The method used is ticket.getMainContact(). This returns an object of class Unit. The object can be a contact or a company!

Customer relations represent relations between customers, i.e. companies and contacts.

They can be:

• directional
  different levels in a hierarchy
• reference
  same level, no hierarchy

A relation is of one of the following types:

• company - company
  e.g. ... has a cooperation with ... (company X cooperates with company Y)
  • The companies can belong to the same or to different customer groups.
  • The involved customer groups can have the same or different customer data models.
• company - contact
  e.g. ... is customer of ... (contact X is customer of company Y)
  • The company and the contact can belong to the same or to different customer groups.
  • The involved customer groups can have the same or different customer data models.
• contact - contact
  e.g. ... is serviced by ... (contact X from company X is serviced by contact Y from company Y)
  • The companies and contacts can belong to the same or to different customer groups.
  • The involved customer groups can have the same or different customer data models.

In the programming interface, a customer object (i.e. a contact or a company) is represented by an object of the class Unit.

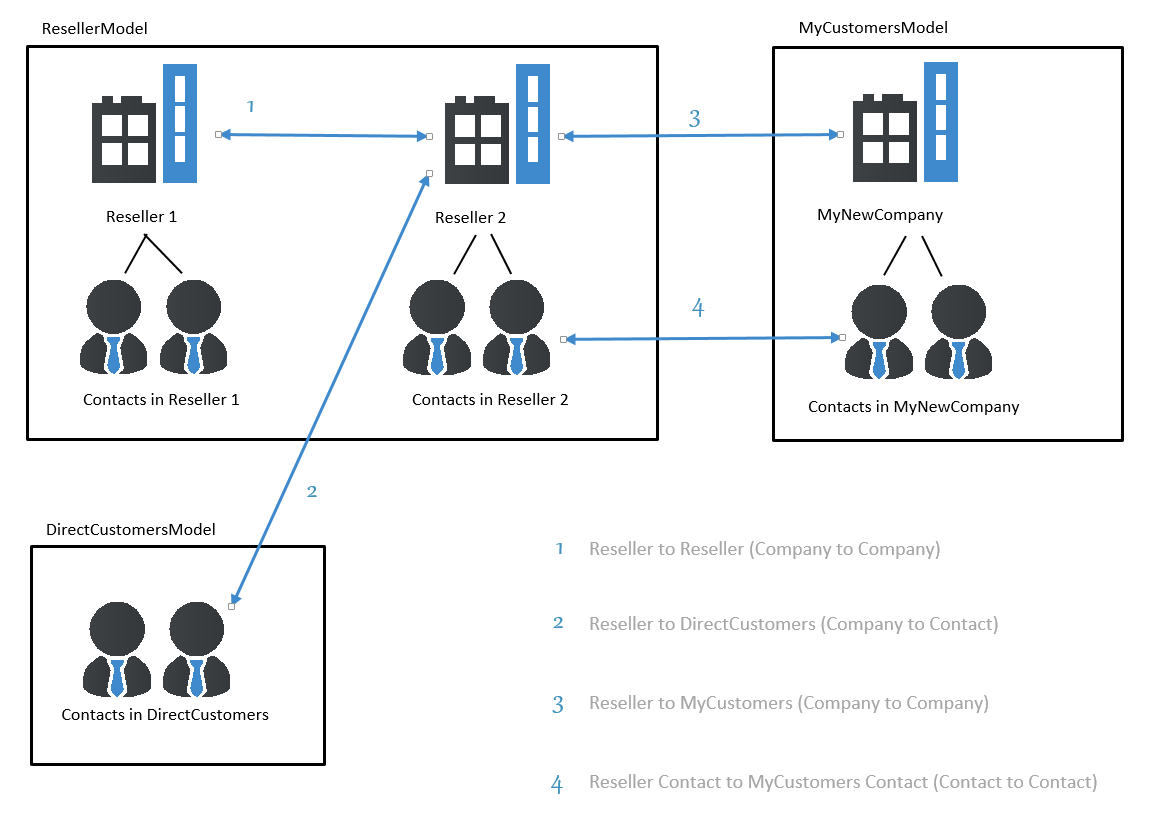

Figure 145: Customer relations in ConSol CM

To work with unit relations in workflow scripts, make sure you have established and configured all required relations using the Admin Tool before you start programming.

Creating Unit Relations Using the Programming Interface

In this book we sometimes use the terms customer and customer definition which are part of the customer model of ConSol CM (FlexCDM). However, the names of the corresponding Java classes are Unit and UnitDefinition. All other Java classes which deal with customer objects are also named Unit... . Please keep that in mind when you work on the administrator level as well as on the programmer's level. Please refer to the ConSol CM Java API documentation for details.

Example: Add a Reseller - End Customer Relation

In the following example, a relation has been defined in the Admin Tool to reflect a reseller - end customer relation. A company of the customer group Reseller sells products to a customer (a person, a contact) of the customer group DirectCustomers.

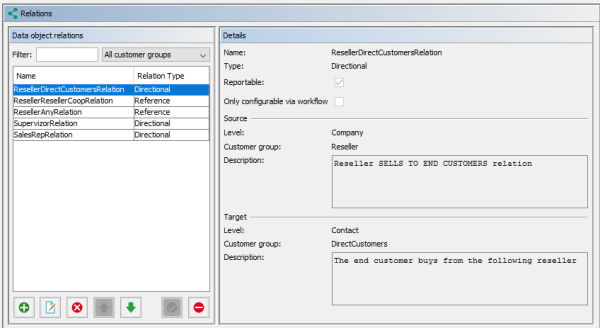

Figure 146: ConSol CM Admin Tool - Definition of reseller - end customer relation

A ticket is created with a main customer. This customer is an employee of a reseller company. The end customer to whom the reseller company sells products is added as additional customer in the role end customer to the ticket. The engineer who works on the ticket should be able to create a relation between the reseller company (source) and the end customer person (target) using a workflow activity.

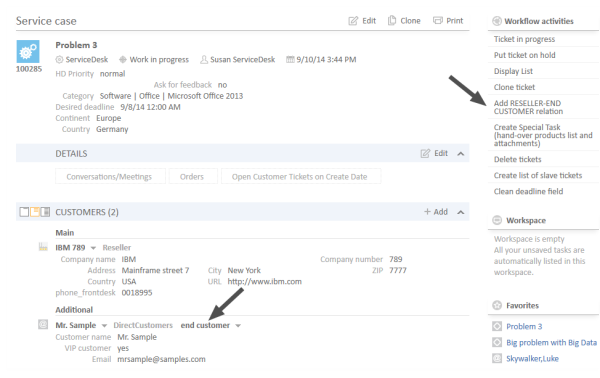

Figure 147: ConSol CM Web Client - Example ticket with main customer and one additional customer

In the Service Desk workflow, there is a workflow activity Add RESELLER-END CUSTOMER relation (see next figure).

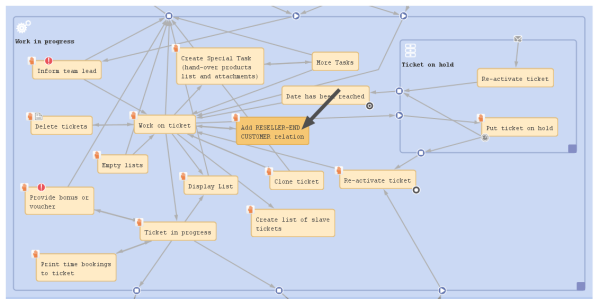

Figure 148: ConSol CM Process Designer - Workflow activity for adding a unit relation

The following script is used in the workflow activity Add RESELLER-END CUSTOMER relation:

Code example 78: Adding a data object relation using a workflow script

When the engineer has executed the workflow activity, the relation from the reseller company to the end user has been established.

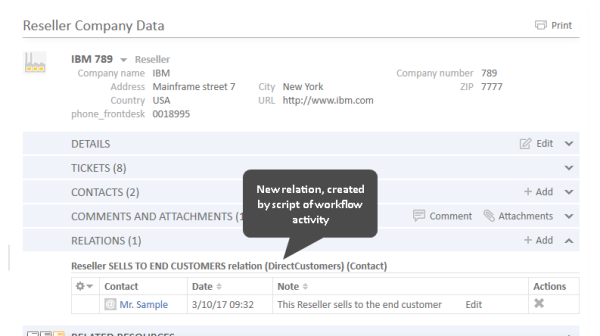

Figure 149: ConSol CM Web Client - New unit relation (created by workflow script)

Important Java Classes for the Work with Unit Relations

Java class	Explanation
Unit	A customer object (unit): a contact or a company.
UnitRelation	A relation between two customer objects (units). Visible in the Web Client on the contact or company page under Relations.
UnitRelationDefinition	The definition of a unit relation as configured in the Admin Tool under User attributes - Data object relations (CM version 6.9) or Customers - Relations (CM version 6.10). A UnitRelation always has a certain UnitRelationDefinition.
UnitRelationDefinitionService	Singleton. Available as object unitRelationDefinitionService. Service which provides helpful methods for the work with customer (unit) relations. See the ConSol CM Java API documentation for details.
UnitRelationService	Singleton. Available as object unitRelationService. Service which provides helpful methods for the work with customer (unit) relations. See the ConSol CM Java API documentation for details.
