An activity represents an action in a workflow. An activity is located within a scope and is of one of the following types:
Using manual and automatic activities, you can model a rather strict business process where the engineer has to follow one of the provided pathes for the ticket. Using scope activities you can model more flexible processes and prepare the CM system for case management where an engineer can react in a rather dynamic way, depending on the required circumstances.
A manual activity has to be performed by a manual action of the engineer using the Web Client GUI. The activity is displayed as Workflow activity in the Web Client, provided at least one of the roles of the engineer has the Execute permission (please refer to the ConSol CM Administrator Manual, section Role Administration, for a detailed explanation). In the Process Designer, the activity is marked by the red hand/manual icon.

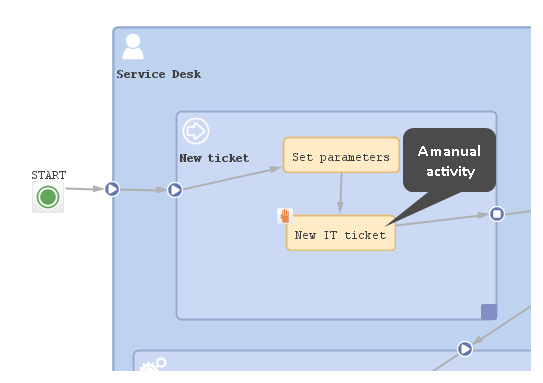

Figure 40: ConSol CM Process Designer - Manual activity in workflow

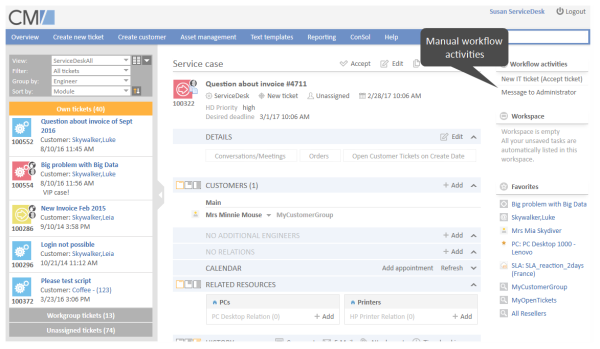

Figure 41: ConSol CM Web Client - Manual activity
An automatic activity is performed automatically by the system and is not displayed in the Web Client. In the Process Designer, an automatic activity is not marked by any special icon.

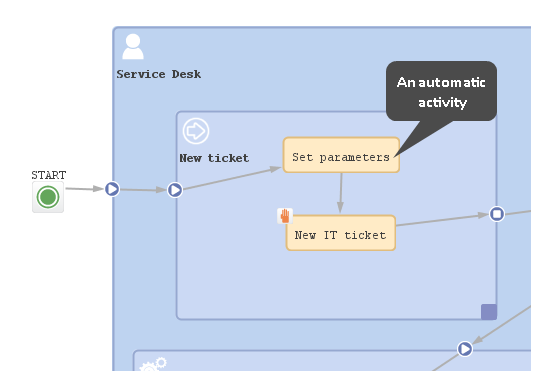

Figure 42: ConSol CM Process Designer - Automatic activities
A scope activity is located within a scope and does not have any incoming connections from other activities. In the Web Client, a scope activity is available as long as the ticket is placed within the scope. This holds true for all subordinate scopes. A scope activity might have subsequent activities (then is causes a process exception) but it can also be an activity without any connections (then it causes an interrupt). See section Interrupts and Exceptions to learn more about interrupts and exceptions.
Please note that a ticket does not necessarily leave a scope when the "last" activity within the scope has been performed. See section Activities about this topic.

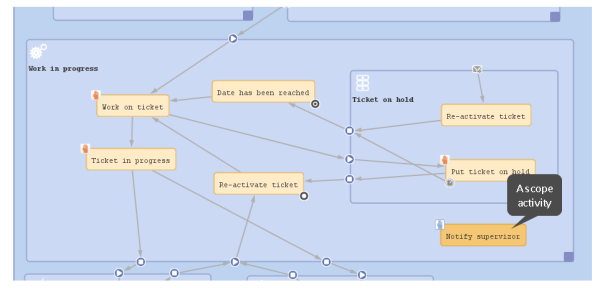

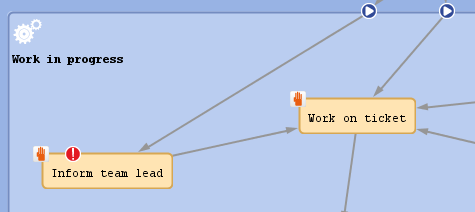

Figure 43: ConSol CM Process Designer - a scope activity (available in the scopes "Work in Progress" and "Ticket on hold")
In order to display and edit the properties of an activity, mark the activity in the Process Designer.
The Properties Editor is opened for the element which has been selected in the main editing panel and contains component-specific parameters. Some general parameters are present for all components, some are present only for a certain type of component.
Figure 44: ConSol CM Process Designer - Selected activity in workflow

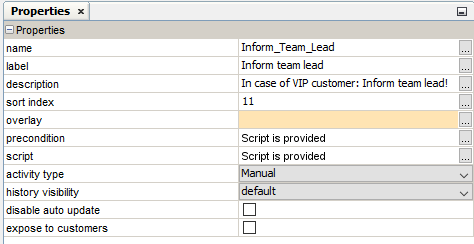

Figure 45: ConSol CM Process Designer - Properties editor
Properties:

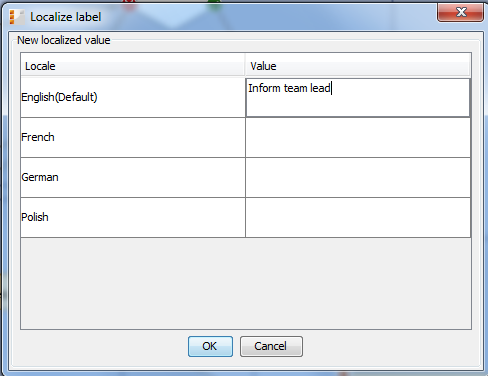

Figure 46: ConSol CM Process Designer - Localization for labels

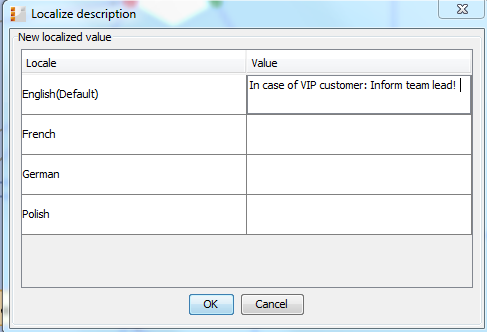

Figure 47: ConSol CM Process Designer - Localized description of an activity

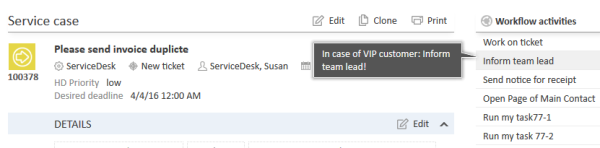

Figure 48: ConSol CM Web Client - Localized description of an activity as mouse-over
Figure 49: ConSol CM Process Designer - Properties editor: Standard overlays and one customer-defined overlay

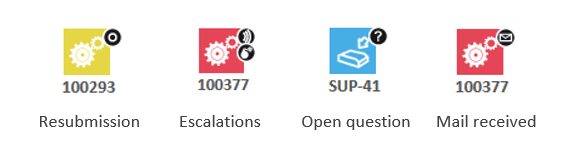

Figure 50: ConSol CM Web Client - Ticket icons with overlays
In case you have to cover a use case where it is not sufficient to set or remove an overlay using the overlay range, you can use a workflow script. Please see section Working With Overlays for details.
Return value is true.
The activity is displayed. If it is a manual activity it can be selected/performed by the engineer in the Web Client GUI.
Return value is false.
The activity is not displayed in the Web Client GUI
Important note about customer fields
When you work with customer fields, i.e. with data fields that contain customer data, please keep in mind that it might be required to consider the data models of different customer groups in case a workflow is used for queues which have been assigned to more than one customer group!
automatic
The activity is performed automatically by the system. The action is transparent for the engineer.
manual
The activity is marked with the red hand/manual icon in the Process Designer GUI. The activity is available as workflow activity in the Web Client and is performed when the engineer has clicked on this activity. It is only available in a certain, strictly defined position of the ticket within the process.
scope
The activity is marked with the blue hand/manual icon in the Process Designer GUI. The activity is available like a workflow activity in the Web Client and is performed when the engineer has clicked on this activity. The scope activity is available as long as the ticket is located within the scope where the activity is placed or in one of the subordinate scopes.
For a detailed explanation of the ConSol CM process logic, please see section Process Logic.

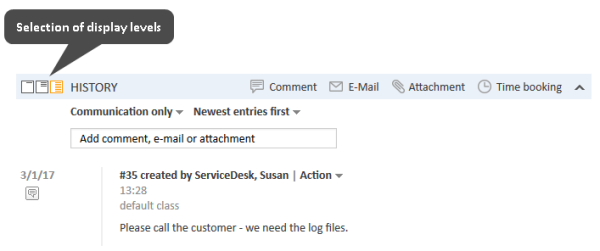

Figure 51: ConSol CM Web Client - Display levels in ticket history
expose to customers
Boolean. Available for manual activities only. If checked (i.e. if set to true), the activity will be offered as workflow activity in the ConSol CM portal, CM/Track. The activity will be offered in CM/Track if no condition is set or if the condition script returns true. If an ACF (Activity Control Form) is set for the activity, it will be offered as well. An example of an ACF in CM/Track is shown in section ACFs in CM/Track.
Figure 52: ConSol CM Process Designer - Two activities which should be displayed for CM/Track customers ("exposed to customers")

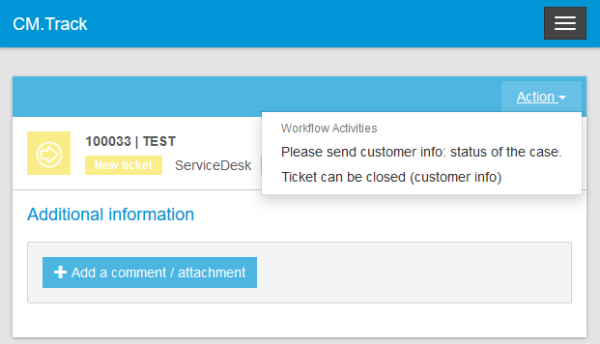

Figure 53: CM/Track (i.e. customer perspective) - Two activities which are displayed in CM/Track for customers ("exposed to customers")
This is the process logic of activities:
In case the activity has an ACF, the Business Logic of ACFs also has to be considered.
A scope activity does not have any incoming connections, but it can have
When a scope activity has been executed, the subsequent position of the ticket depends on the workflow topology:
A ticket always waits behind the last activity which has been executed and not before the new one!
This is relevant, for example, when a view is defined: it is important to know that the ticket might not have entered the next scope, because it is still waiting behind the previous activity in the current scope.
If the ticket temporarily leaves its scope due to the execution of a scope activity, triggers are restored when the ticket reenters the scope afterwards.
In case the ticket has been opened by a VIP contact, i.e. a contact where the boolean field vip is true, the team lead should be informed. If it is no VIP, the activity should not be offered. The customer field vip which is part of the customer data model is checked for this purpose.
Figure 54: ConSol CM Process Designer - Workflow activities (one with precondition script)
import com.consol.cmas.core.server.service.*
import com.consol.cmas.common.model.customfield.meta.UnitDefinitionType
def ticket = workflowApi.ticket
// fetch main contatc of the ticket
def maincontact = ticket.getMainContact()
def unit_type = maincontact.definition.type
log.info 'vipCheck: Unittype is ' + unit_type
log.info 'vipCheck: Unittype class is ' + unit_type.getClass()
if(unit_type == UnitDefinitionType.COMPANY) {
log.info 'No vipCheck for comapnies possible! Returning false ... '
return false
} else if (unit_type == UnitDefinitionType.CONTACT){
// fetch e-mail address of the man contact. The data object group field has to be addressed using data object group name:data object group field name
def vip_field
def custgroup = maincontact.customerGroup.name
println 'vipCheck: Customergroup is now ' + custgroup
switch(custgroup) {
case "Reseller": vip_field = "vip_person";
break;
case "DirectCustomers": vip_field = "vip_dircust"
break;
case "MyCustomerGroup": vip_field = "vip"
break;
case "OurPartnerCompanies": vip_field = "vip_partners"
break;
case "RetailCustomers": vip_field = "retail_vip"
break;
}
def vip_value = maincontact.get(vip_field)
log.info 'VIP is now ' + vip_value
if (vip_value){
return true
} else {
return false
}
}
Code example 2: Precondition script: activity should only be displayed for VIP customers

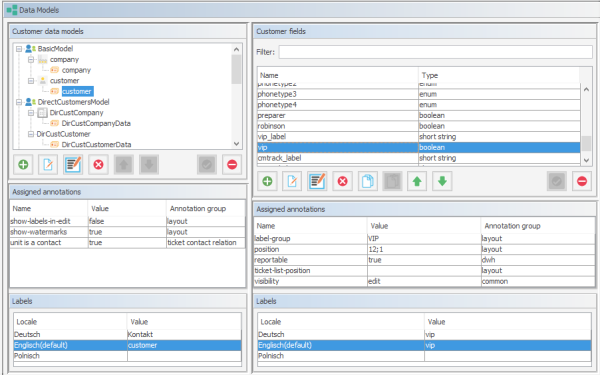

Figure 55: ConSol CM Admin Tool - Customer field "vip" (CM version 6.9)

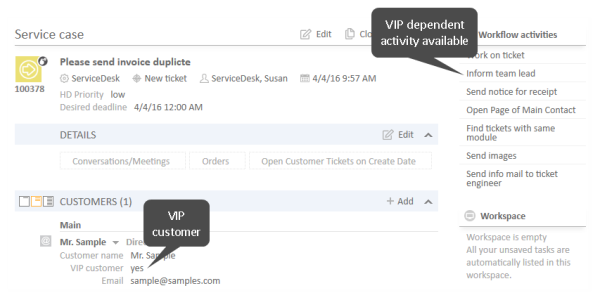

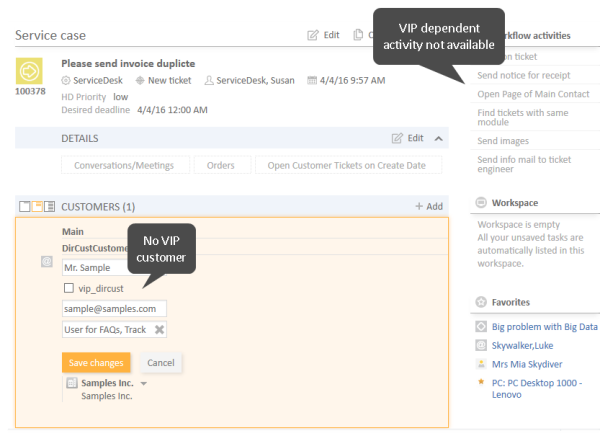

Figure 56: ConSol CM Web Client - Precondition: Return value TRUE
Figure 57: ConSol CM Web Client - Precondition: Return value FALSE
When a ticket has been opened, an email should be sent automatically to the main contact of the ticket.

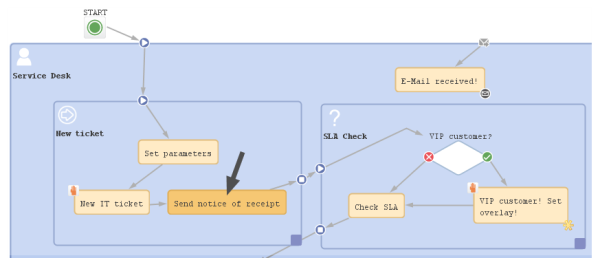

Figure 58: ConSol CM Process Designer - Automatic activity where receipt note is sent
Script in workflow activity Send notice of receipt:
log.info'Calling SendReceiptNotice script ...'
scriptExecutionService.execute("SendReceiptNotice.groovy")
Script SendReceiptNotice.groovy in Admin Tool:
import com.consol.cmas.common.model.mail.Mail
import com.consol.cmas.common.util.MailHeadersUtil;
import com.consol.cmas.core.server.service.*;
import static com.consol.cmas.common.util.TemplateUtil.TICKET_SUBJECT_TEMPLATE_NAME;
import com.consol.cmas.common.model.customfield.meta.UnitDefinitionType
// create new mail object
def mail = new Mail()
def ticket = workflowApi.getTicket()
// fetch main contatc of the ticket
def maincontact = ticket.getMainContact()
def unit_type = maincontact.definition.type
log.info 'Mailscript: Unittype is ' + unit_type
log.info 'Mailscript: Unittype class is ' + unit_type.getClass()
if(unit_type == UnitDefinitionType.COMPANY) {
println 'No email address for company; no receipt notice sent.'
return
} else if (unit_type == UnitDefinitionType.CONTACT){
// fetch e-mail address of the man contact. The data object group field has to be addressed using data object group name:data object group field name
def toaddress_field
def custgroup = maincontact.customerGroup.name
switch(custgroup) {
case "Reseller": toaddress_field = "email";
break;
case "DirectCustomers": toaddress_field = "dir_cust_email"
break;
case "MyCustomerGroup": toaddress_field = "email"
break;
case "OurPartnerCompanies": toaddress_field = "email"
break;
case "RetailCustomers": toaddress_field = "retail_customer_email"
break;
}
def toaddress = maincontact.get(toaddress_field)
if (!toaddress){
log.info 'No email address found for contact, no receipt notice sent.'
} else {
// put the e-mail TO address into the Mail object
mail.setTo(toaddress)
// fetch the REPLY TO address, theis is stored in a system property
def replyaddress = configurationService.getValue("cmweb-server-adapter","mail.reply.to")
// put the e-mail REPLY TO address into the Mail object
mail.setReplyTo(replyaddress)
// build e-mail text using a template which is stored in the Template Designer
def text = workflowApi.renderTemplate("Acknowledgement_of_receipt")
// put the e-mail text into the Mail object
mail.setText(text)
// create the subject of the e-mail, the ticket number with the correct Regular Expression
// has to be set for correct recognition of incoming e-mails for the ticket
// ****** alternative solutions for PD manual! *****
// solution 1:
// def ticketname = ticket.getName()
// def subject = "Your case has been registered as Ticket (" + ticketname + ")"
// solution 2: (needs import of TemplateUtil.TICKET_SUBJECT_TEMPLATE_NAME
def subject = templateService.merge(TICKET_SUBJECT_TEMPLATE_NAME, [ticketName:ticket.name])
// put the subject into the Mail object
mail.setSubject(subject)
// Mail should use the e-mail script which is configured for the queue
mail.useDefaultScript()
// send out the e-mail and register status
def attList = new ArrayList<AttachmentEntry>()
def collection = new HashSet<MailEntry>()
def mailStatus = true;
try {
mail.send();
} catch (Exception e){
mailStatus = false;
}
} // end if (!toaddress){
} // end of else if (unit_type.equals('COMPANY')){
Code example 3: Scripts for automatic activity where receipt note is sent, variant 1
// lines of code alost identical to variant 1 except for the sending of the mail:
new Mail().setSubject( subj ).setTo( contact_e ).setReplyTo( replyto ).setText( text ).setTicketAttachments( null ).send()
Code example 4: Script for automatic activity where receipt note is sent, variant 2
The ticket should be assigned to the engineer who executes the activity New IT ticket.

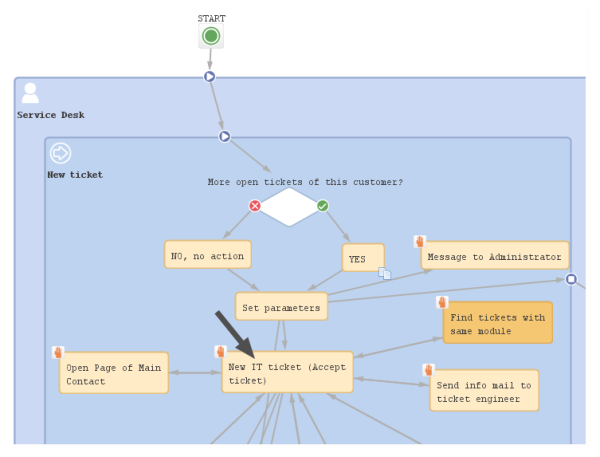

Figure 59: ConSol CM Process Designer - Workflow activity where engineer should be assigned

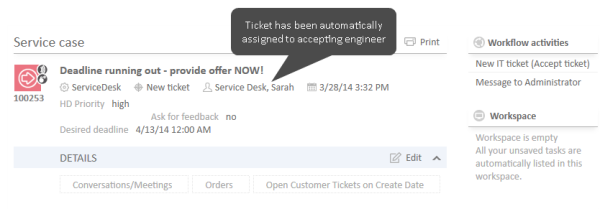

Figure 60: ConSol CM Web Client - Ticket passed through activity where engineer was assigned
// Get the engineer who is executing the activity:
// Java Style is possible: def curr_eng = workflowApi.getCurrentEngineer()
// we use Groovy style here:
def curr_eng = workflowApi.currentEngineer
// alternative would be:
// def curr_eng = engineerService.current
// Assign the ticket to the current engineer
// Java style is possible:
ticket.setEngineer(curr_eng)
// groovy alternative would be:
// ticket.engineer = curr_eng
Code example 5: Script for assigning ticket to current engineer
Make sure that you always use the correct engineer object!
The current engineer is the engineer who is logged in, who is executing the current activity. You can get the object by using one of the following methods.
Using workflowApi:
// Java notation
def curr_eng = workflowApi.getCurrentEngineer()
// Groovy notation
def curr_eng = workflowApi.currentEngineer
Using engineerService :
// Java notation:
def curr_eng = engineerService.getCurrent()
//Groovy notation
def curr_eng = engineerService.current
The ticket engineer is the person who is (at this point of time) the ticket owner and responsible for the ticket. You can get the object by using the following method:
//Java notation
def tic_eng = ticket.getEngineer()
//Groovy notation
def tic_eng = ticket.engineer
The scope activity Forward problem to supervizor should be present for the entire life cycle of the ticket. For really problematic tickets, the engineer can use a "shortcut": the ticket does not have to be moved through the entire process but can be directly sent to a special management queue where a supervisor takes care of it.

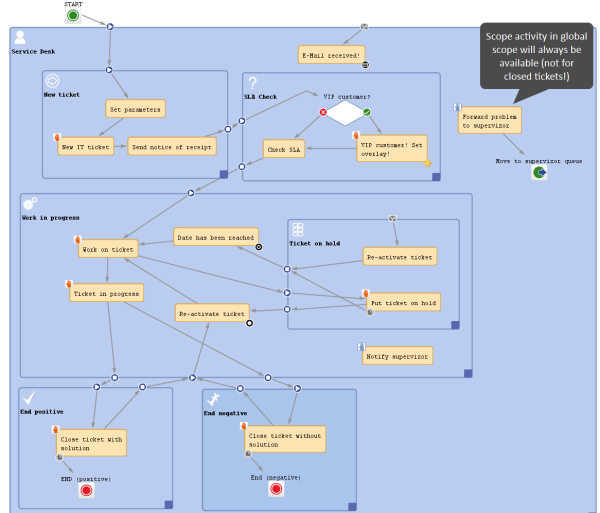

Figure 61: A scope activity which will be available throughout the entire life cycle of the ticket, because the activity is placed in the global scope
