Attributes for Chart Widgets

Chart widgets use the Highcharts library. All attributes are JSON objects.

The attributes which can be set comprise:

• General attributes like visibility.
• The basic configuration options of the Highcharts library. Their values ...
  • can be set using the page customization attributes.
  • can be set using the Admin Tool script which is associated with the chart widget, see section above. The attributes have to be returned as a HashMap.
  • can be left empty.

Figure 198: Highcharts configuration options

General attributes:

• localization
  Allows to set localized (i.e. country-specific) values for the strings used as values in attributes. Please see section Localization of string values of attributes for a detailed explanation.

• visible

  Defines if the widget is displayed, true or false.

Highchart-specific attributes:

• chart
  Options regarding the chart area and plot area as well as general chart options (http://api.highcharts.com/highcharts#chart). Example:

  chart = "type:'column', pltShadow:false, backgroundColor:'#4dc245', height:

  300";"items: [{html:'sometext', style: { left: '100px'; }}]"

  Code example 8: Chart object

• colors
  An array containing the default colors for the chart's series. When all colors are used, new colors are pulled from the start again. Defaults to: http://api.highcharts.com/highcharts#colors
• credits
  Highchart, by default, puts a credits label in the lower right corner of the chart. This can be changed using these options: http://api.highcharts.com/highcharts#credits
• drilldown
  Options for drill down, the concept of inspecting increasingly high resolution data through clicking on chart items like columns or pie slices (http://api.highcharts.com/highcharts#drilldown).
• exporting
  Options for the exporting module (http://api.highcharts.com/highcharts#exporting).
• global
  Global options that don't apply to each chart (http://api.highcharts.com/highcharts#global). Can only be set for a type, i.e., for chartWidget or tableWidget, not for scopes or single widgets!
• labels
  HTML labels that can be positioned anywhere in the chart area (http://api.highcharts.com/highcharts#labels).

  labels = "items: [{html:'sometext', style: { left: '100px'; }}]"

  Code example 9: Labels object

• lang
  Language object. The language object is global and it can't be set on each chart initiation (http://api.highcharts.com/highcharts#lang). Can only be set for a type, i.e., for chartWidget or tableWidget, not for scopes or single widgets!
• legend
  The legend is a box containing a symbol and name for each series item or point item in the chart (http://api.highcharts.com/highcharts#legend).
• loading
  The loading options control the appearance of the loading screen that covers the plot area on chart operations (http://api.highcharts.com/highcharts#loading)
• localization
  Localized values, i.e., "de: {subject:'Thema', yes:'Ja'}, en: {subject:'Subject', yes:'Yes'}".
• navigation
  A collection of options for buttons and menus appearing in the exporting module (http://api.highcharts.com/highcharts#navigation).
• noData
  Options for displaying a message like "No data to display" (http://api.highcharts.com/highcharts#noData).
• pane
  Applies only to polar charts and angular gauges. This configuration object holds general options for the combined X and Y axes set (http://api.highcharts.com/highcharts#pane).
• plotOptions
  The plotOptions is a wrapper object for config objects for each series type (http://api.highcharts.com/highcharts#plotOptions).
• series
  The actual series to append to the chart (http://api.highcharts.com/highcharts#series).
• subtitle
  The chart's subtitle (http://api.highcharts.com/highcharts#subtitle).
• title
  The chart's main title (http://api.highcharts.com/highcharts#title).
• tooltip
  Options for the tool tip that appears when the user's mouse hovers over a series or point (http://api.highcharts.com/highcharts#tooltip).
• visible
  Indicates whether the widget is shown.
• xAxis
  The X axis or category axis (http://api.highcharts.com/highcharts#xAxis).
• yAxis
  The Y axis or value axis (http://api.highcharts.com/highcharts#yAxis).

Example of a Chart Widget

The following example shows the widget TicketsInView and explains the logic of the associated Admin Tool script ticketsInViewDataWidget.groovy. For the entire script, please see the code block above (Configuration Script for Widgets). Here, the lines of code are set in relation to the GUI elements which they configure.

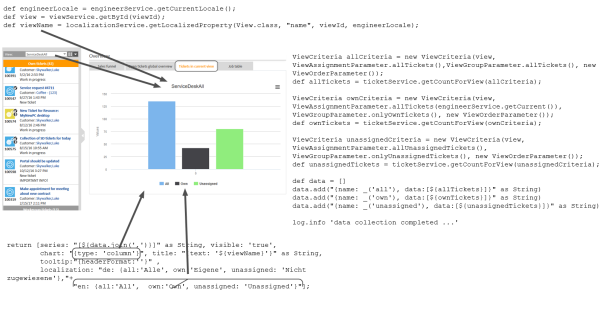

Figure 199: Chart widget example with script code

Funnel Charts

With charts of type funnel, funnel-like representations can be implemented as often used in sales funnels.

A funnel chart is implemented in the same way as other charts, only the sub-attribute type of the chart attribute has to be set to funnel. The following example shows a sales funnel chart implementation where fixed numbers are used in the script. Of course, in a real life implementation, these figures will have to be replaced by figures which are created dynamically from the current content of the database.

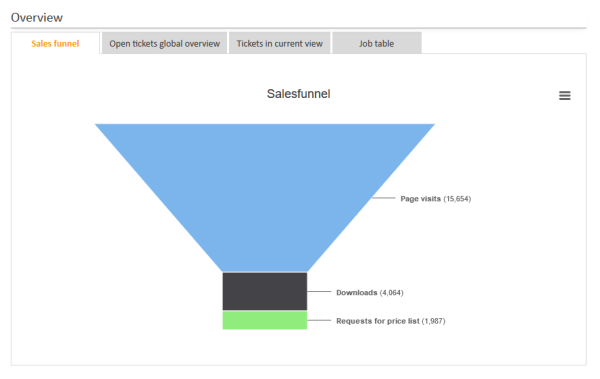

Figure 200: ConSol CM Web Client: Sales Funnel widget

The following script is used:

Code example 10: Groovy script for the implementation of a sales funnel chart on the Web Client Dashboard (with fixed numbers as example)
