Activity Control Forms (ACFs)

This chapter discusses the following:

• Introduction to ACFs
• Adding an ACF to a Workflow
• Properties of an ACF
• Business Logic of ACFs
• Examples for the Use of ACFs
• ACFs in CM.Track

Introduction to ACFs

An Activity Control Form (ACF) is a web form which is offered to the engineer at one or more process steps. In this way, the data input can be controlled in a very strict way.

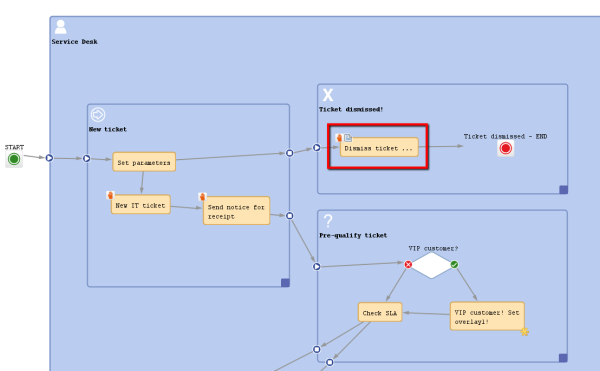

Figure 100: ConSol CM Process Designer - Activity Control Form (ACF)

For example, when a help desk agent wants to dismiss a complaint, this cannot be performed without giving a reason. In the process this is implemented using an ACF which is displayed when the engineer has clicked on the workflow activity Dismiss ticket. A form is opened where the engineer has to select a category for the dismissal and a text box where he/she can enter a note. Or, using the example of a sales process, when an engineer (a sales agent in this case) clicks on Make appointment with potential customer, a form is displayed, where the budget, the size of the customer's company, and the products of interest have to be entered.

An ACF can offer optional and mandatory fields.

We recommend to set a "..." behind the name of every activity which will automatically open an ACF. This helps the user to distinguish between ACF-loaded activities and simple activities.

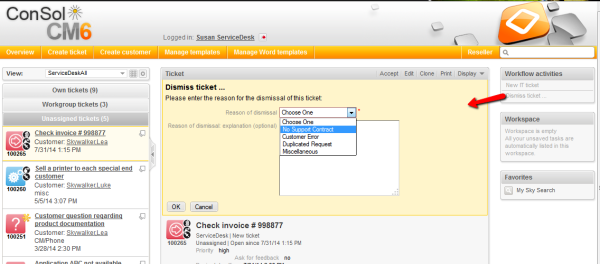

Figure 101: ConSol CM Web Client - Opened ACF

Adding an ACF to a Workflow

Variant A: Starting the ACF Definition Using the Admin Tool

Before you can add an ACF to the workflow, it has to be defined using the Admin Tool. Please refer to the ConSol CM Administrator Manual, chapter Custom Field Administration for a detailed explanation. In the current manual, we assume you have already defined an ACF and want to add it to the workflow.

An ACF is always added to a manual activity. To add an ACF to the target activity, grab the ACF icon in the palette and attach it to the activity using drag-and-drop. Then you can configure the ACF properties. In case you add an ACF to an automatic activity, this activity is changed to type Manual.

In the Web Client, the ACF will be opened when the user clicks on the workflow activity to which the ACF is attached in the workflow. See figure above.

Variant B: Starting the ACF Definition Using the Process Designer

You can also add an empty ACF to a workflow activity and define the name during this operation. Then an empty ACF will be created in the Admin Tool and you have to assign the Custom Fields to this ACF in a later step.

Do not forget to reload the Admin Tool data! When you have defined the ACF in the Process Designer, there is no automatic data transfer to the Admin Tool.

Properties of an ACF

These are the properties of an ACF:

• name
  String. The name of the ACF. Select the name from the drop-down menu. All ACFs which have been defined in the Admin Tool are available.
• required fields
  This opens a pop-up window (see figure below) where you can define mandatory fields. As a default, all ACF fields are optional, i.e. when the form is opened in the Web Client, the engineer can enter data but can also continue the process without doing so. For mandatory fields, the process can only be continued when the field has been filled in.
• Initializing script
  Here, you can define a script which will be executed before the ACF is loaded. Usually, this kind of script is used to set default values in ACF Custom Fields.
• Precondition script
  Here, you can define a script which is executed to determine if the ACF will be displayed (return value true) or not (return value false).

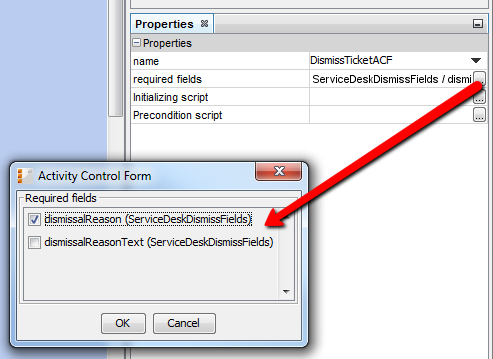

Figure 102: ConSol CM Process Designer - Properties of an ACF

Business Logic of ACFs

ACF at a Manual Activity

ACFs are only possible for manual activities. When a user selects a workflow activity which has an ACF in the Web Client, the following steps are performed:

1. If an ACF precondition script is present, this precondition script is executed.

If the ACF precondition script returns true:

1. If an ACF Init Script is present: the ACF Init Script is executed.
2. The ACF is displayed and the engineer fills in the form, with optional and mandatory fields. If fields, which are part of the ACF, are also available in the regular ticket data fields, those fields might have been edited/filled-in by an engineer before the ACF is used. Thus those fields might be already filled-in in the ACF. The engineer can leave them as-is (and use the ACF as control only) or can modify the content of the fields.
3. The workflow activity is executed as soon as the engineer has clicked on OK in the ACF.

If the ACF precondition script returns false:

1. The ACF is not displayed.
2. The workflow activity is executed as soon as the engineer has clicked on the workflow activity (name) in the Web Client.

When an ACF is canceled, it returns to the scope of the last activity, because the ticket always waits behind the last activity (and not before the next).

If the data of the ACF should not be shown before a certain step in the process has been reached, the data can be put into one (or more) separate Custom Field Group(s) which are invisible at the start of the process (Custom Field Group annotation group-visibility = false). In the step after the activity with the ACF, the Custom Field Groups are faded in using the script of a workflow activity. Please refer also to the Best Practices section in this manual for more recommendations concerning the use of ACFs.

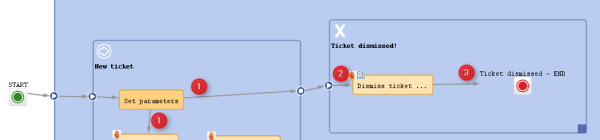

Figure 103: ConSol CM Process Designer - ACF process logic

Example (ACF with Init script, without precondition script):

• A ticket is created and runs through the automatic activity Set parameters.
• It waits behind this activity, at position (1) in the scope New ticket. The next activities Dismiss ticket ... and New IT ticket (not shown here) are displayed in the Web Client.
• The engineer selects Dismiss ticket ... .
• The Init script for the ACF at Dismiss ticket ... is executed (2).
• The ACF is shown in the GUI.
  • Variant 1:
    1. The ACF is canceled.
    2. The ticket goes back to (1).
  • Variant 2:
    1. The ACF is filled-in and confirmed.
    2. The activity Dismiss ticket ... is executed (in case there is a script in this activity, the script is executed), the ticket passes through the node and continues on its way (3). In the example above, it is closed.

ACF at Manual Activity with Condition

In case a manual activity has a condition, the activity is only displayed if the condition script returns true, i.e. also the ACF is only displayed if the condition script returns true.

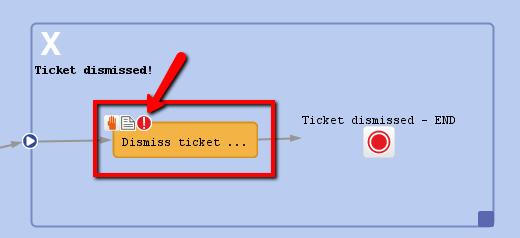

Figure 104: ConSol CM Process Designer - Manual activity with ACF and condition

Examples for the Use of ACFs

Use Case 1: ACF for the Dismissal of a Customer Request

This example was used in the previous sections. The engineer can only dismiss a customer request when a reason has been given. This is selected from a drop-down menu. Additionally, the engineer can add a note in a text field.

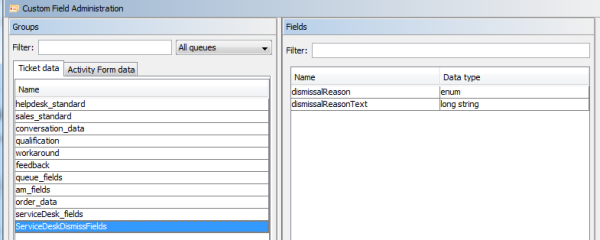

Figure 105: ConSol CM Admin Tool - ACF definition

Figure 106: ConSol CM Process Designer - ACF in workflow

The Web Client GUI and the ACF properties are shown in the figures of the previous paragraphs.

Use Case 2: Fill in Sales Information When Bid Is Created

When a sales representative selects the workflow activity Create bid in the Web Client GUI, an ACF is opened where several fields are offered. One field is a drop-down menu and a default value is set via script. The other fields are optional. The field Product has been filled-in for the ticket in previous process steps, so this field is offered with the selected value. It can either be left unchanged or it can be modified.

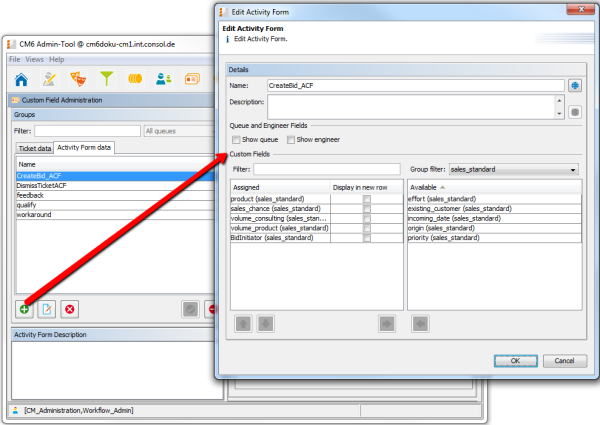

Figure 107: ConSol CM Admin Tool - ACF for Sales workflow

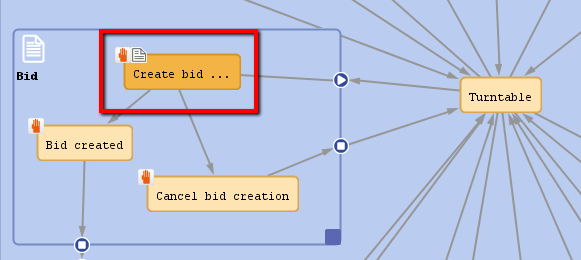

Figure 108: ConSol CM Process Designer - ACF in Sales workflow

ticket.set("sales_standard.BidInitiator","Mr. Miller")

Code example 12: ConSol CM Process Designer - Initializing script for Create bid ACF

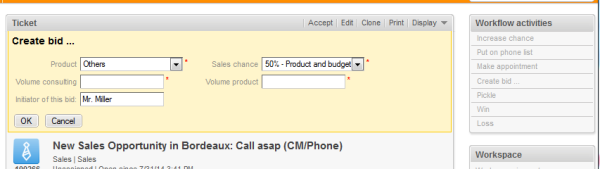

Figure 109: ConSol CM Web Client - Sales process ACF

ACFs in CM.Track

If an activity with an ACF is configured as expose to customers (see section The Properties Editor (Example: Activity)), the ACF will be available in CM.Track.

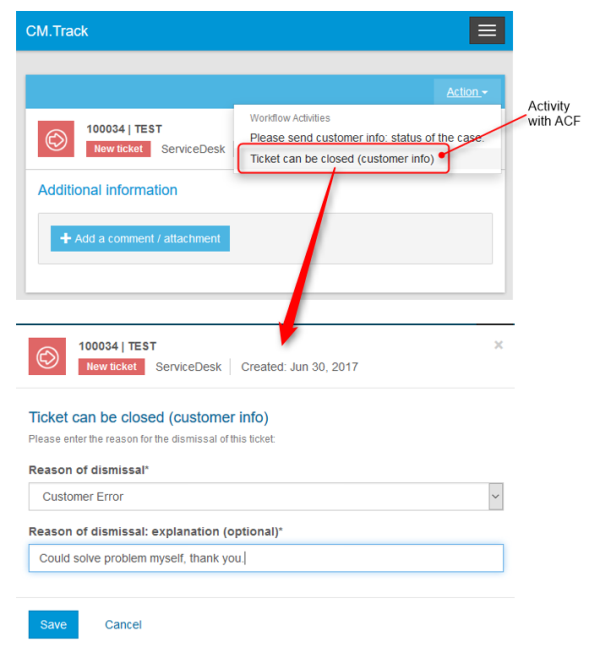

Figure 110: CM.Track - Activity with ACF

Please note that in order to expose data fields (Custom Fields, Data Object Group Fields) in CM.Track, either the CM system property cmas-restapi-core, security.fields.customer.exposure.check.enabled has to be set to false (which will expose all fields to customers!) or the property has to be set to trueand the data fields which should be available ("exposed") have to be annotated with customer exposure = true. This also applies to all data fields which are used in an ACF!

The following features and functionalities are or are not (yet) available for ACFs in CM.Track.

Supported:

• Custom Fields as well as Data Object Group Fields can be used
• Mandatory fields (red asterisk)
• Add/remove rows in lists (single field lists or lists of structs)
• Pre-filled fields
• Layout definition using ACF design in the Admin Tool

Not supported (as of CM version 6.10.7.0):

• Queue fields
• Engineer fields
• Dependent enums
• Autocomplete features
• Post activity execution mechanism (e.g. postActivityExecutionHandler)
• Web Client annotations (annotations in the group cmweb-common)

However, the features which are not (yet) supported are usually not in operation for customer interactions in CM.Track.
