Deployment (Import/Export)

Introduction

ConSol CM offers the option to export the system configuration with or without run-time data into a file and to import this file into another ConSol CM system. The transfer file is called a scenario (sometimes also called a scene). It can contain various data - details are explained in the following sections.

Usually a scenario with configuration data is used to transfer data from a test to a staging or production system.

Since ConSol CM works with transfer keys for all objects it is highly recommended to transfer test to staging or production environments by using a scenario, and not to implement the same functionality in both systems. In case a transfer (export/import) is performed later on, there will be duplicate objects! Please read the detailed explanations below.

Scenarios

A scenario is a file in a proprietary ConSol CM format (similar to .zip, .jar, and .tar) that contains the data of a ConSol CM installation. It can be exported from one ConSol CM system and imported into the same or another system. This can be very helpful, e.g., when a test scenario is built on a test system which can then be transferred to a production server.

When an export file is created (see detailed explanation in the sections below) the administrator can decide which data should be included.

A scenario will always contain:

• all customer-specific system properties,
  i.e., system properties where the module name starts with custom-, please see section CM system properties for details!
• all page customizations
• all REST client GUI configurations

A scenario can contain, depending on the selection of the administrator (see figure below):

• run-time data
• configuration data

A scenario will never contain:

• general (not customer-specific) system properties (e.g., mail server, LDAP directory, etc.)

Deployment (Import/Export) Using the Admin Tool

In the Admin Tool, the deployments are managed using the navigation item Import/Export in the navigation group System. In this navigation item you can import or export scenarios (i.e., the whole configuration or part of it) in an application-specific format. You usually do this to transfer data between different ConSol CM installations. A typical example is transfer of the configuration from a test system to a production system.

All export/import actions are logged in the file transfer.log. A detailed description of this file is provided in the section Logging and Log Files.

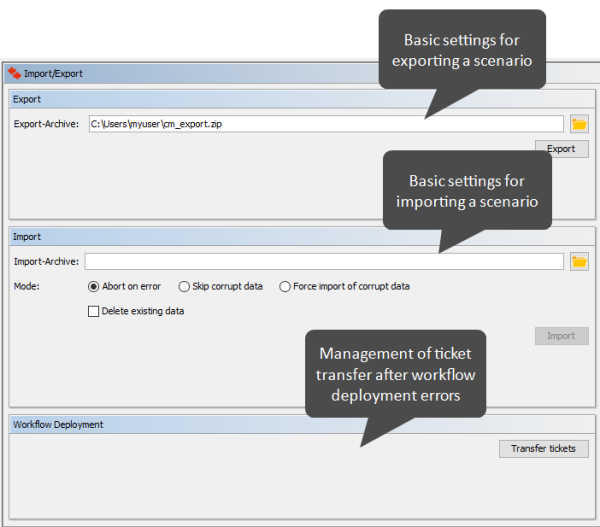

Figure 408: ConSol CM Admin Tool - System, Import/Export

The import of external data can modify, overwrite, or delete existing data irrecoverably. Although the user is prompted for confirmation at critical points during deployment, this cannot prevent erroneous handling. Use this function only if you are very sure what you are doing. In case of doubt please ask the ConSol CM support team or a ConSol CM consultant for assistance.

Export

• Export-Archive:
  Path to the export archive. When you open the navigation item Import/Export, the default path for the export (<home directory of the admin user>/cm_export.zip) will be set. Use this value or enter the path and name of the file you want to create. Alternatively, you can click the Folder button to open the file browser.

Click on Export afterwards to start the data export.

You will have to select the data that should be included in the export file (scenario). The following options are available:

• Runtime data
  This refers to data that is stored as operating data, e.g., tickets, resource data, and customer data.

  • All
    Ticket data, customer data, is exported completely and the complete configuration is exported. When you select the checkbox All, all other checkboxes are selected automatically. If CM/Resource Pool is active, the resource data is also exported.
  • Single ticket
    If the checkbox Single ticket is ticked, you have to insert the ticket name in the input field. (The ticket name is indicated below the ticket icon in the Web Client.)
    Tick the checkbox Anonymized to anonymize (hash) the exported data. In this way, no real customer, engineer, or resource information will be transferred to the importing system. The following data will be anonymized:
    • Content of ticket fields (some values as enum aren't anonymized)
    • Ticket attachments
    • Ticket history
    • Content of customer fields
    • Unit history

    The Single ticket option is not supposed to be used for regular system operation, but it is a functionality which is offered to facilitate bug-tracking. The export produces a .zip/.jar file containing the ticket data in XML files. All data required for the ticket (i.e., all related objects) are exported with the ticket, so be careful when the ticket is imported into another system - data might be changed here!

  • All without tickets
    The complete installation beside the tickets is exported, i.e., the customer data and the complete configuration. When you select the checkbox All without tickets, all other checkboxes except for All are selected automatically. If CM/Resource Pool is active, the resource data is also exported.
  • Only customer data
    Only customer data (i.e., the customer data model and the actual customer data) is exported. Nothing else. (The checkbox Customer model is checked automatically.)
  • Only resource data
    Only resource data (i.e., the resource data model and the actual resource data) is exported. Nothing else. (The checkbox Resource model is checked automatically.)
• Configuration data
  This refers only to the configuration in the Admin Tool, no run-time data is exported. Depending on the selection you have made, other check boxes might be checked automatically in order to cover all dependencies within the exported data.
  • All
    The complete configuration is exported. When you select the checkbox All, all other checkboxes under Configuration data are selected automatically.
  • Enum definitions
    The definitions and localizations of sorted lists (enums) are exported. This represents the data which is defined in the navigation item Enums (navigation group Lists). For details about enums, please refer to section Managing Sorted Lists: Enums.
  • MLA definitions
    The definitions and localizations of MLAs (multi level attributes) are exported. This represents the data which is defined in the navigation item MLAs (navigation group Lists). For details about MLAs, please refer to section MLAs.
  • Page Customization
    Only the page customizations which have been defined specifically for the system (i.e. not the default values) are exported. These are the values which are stored in the database tables cmas_web_customization and cmas_web_customization_values. Default values are exported only if they were set to another value and have been changed back to the default value manually by clicking the Update button. For a details overview of this topic, please refer to section Page Customization.
  • Engineers
    Only the engineers with their data are exported. This also includes the roles the engineers have been assigned.
  • Admin Tool templates
    Only the Admin Tool templates (see section Admin Tool Templates for details) are exported.
  • Scripts
    Only the Admin Tool scripts are exported (see section Admin Tool Scripts for details).
  • Text templates
    Only the templates that are stored in the Text Template Manager (see section Text Templates for details) are exported.
  • Document templates
    Only the Microsoft Word or OpenOffice templates are exported, this is only relevant if CM/Doc is in operation (see section CM/Doc for details).
  • Customer model
    Only the customer fields that are used to define the customer model are exported. No run-time customer data is included.
  • Resource model
    Only the resource fields that are used to define the resource model are exported. No run-time resource data is included.
  • Classes of Text
    • If set to true, all classes of text which are available in the CM system will be exported.
    • If set to false, only the classes of text which have been assigned to a queue which is included in the export will be exported. As a consequence classes of text without queue association will not be exported at all in this case.
  • Custom forms
    Only web forms are exported (see CM/Forms for details).
  • Queue-related and other data
    Only queue configuration and general configuration settings are exported (workflows, queues, ticket fields, enum values, MLAs, roles, views, system properties, ...), in short: everything which is not included above. Transfer the names of all queues you would like to include in the export file (scenario) into the list with Exported Queues.
  • System documentation
    Only the system documentation is exported. The export file can be used to generate a system documentation in the navigation item Documentation Generator, see System Documentation.
• Workflow Export
  This panel is activated when you have selected All or Queue-related and other data in the Configuration data panel.
  The selection in the Workflow Export panel might influence the size of the exported scenario considerably! You might want to delete some workflows before you export a scenario which contains workflows.
  • Only latest/installed versions
    Only the installed versions of the workflows will be exported, i.e., the versions which are currently deployed and active in the system. All older versions will not be exported.
  • All versions
    All versions, of all workflows will be exported, currently deployed and older versions. Please be aware that checking this check box might cause the export to take very long and to a huge scenario, depending on the number of workflows which are stored in the system.

If you would like to export the complete configuration, select All in the Configuration data section. The export/import of subsets (e.g., templates only) is usually applied when selected data (e.g., from a test environment) has to be transferred to another (e.g., live) system.

Import

General

Please note that during the import, the DWH LIVE mode must be switched off.

The general principles of ConSol CM scenario import are:

• If the checkbox Delete existing data has not been selected, the scenarios are merged, as described here:
  • Data are only added, nothing is deleted.
  • If the imported scenario contains the same field/parameter as the original scenario, the value from the imported one overwrites that of the original scenario.
    Example: For the field priority, the imported scenario has the annotation position = 0;2. The original scenario contains the value position = 2;2 for the field priority. Thus, in the resulting scenario after the import, the value for position is 0;2.
  • If the imported scenario contains more parameters than the original scenario, the parameters are added to the original one.
    Example: The imported scenario has the annotation visibility = none for the field PersonID. In the original scenario, the field PersonID is present, but does not have the annotation. Thus, in the resulting scenario after the import, the field PersonID will have the annotation visibility = none and will thus be invisible.
  • If the imported scenario contains less data/fewer parameters than the original one, the original data will be present in the resulting scenario. Nothing is deleted.
    Example: If the field PersonID in the imported scenario no longer contains the annotation visibility = none, but the original scenario does contain the annotation, it will remain. Thus, in the resulting scenario the field PersonID is still invisible.
  • For scripts and templates, the latest version (according to the time stamp) is used, no matter from which scenario.
  • Objects are identified by an internal key (transfer key).
    When an imported scenario contains an object with the same name but another transfer key, technically, these are two objects, and the new object will be added from the import to the original scenario (e.g., when a user Mr. Miller exists in both scenarios, there will be one user Mr. Miller and one user Mr. Miller (1) in the resulting scenario after the import.
    To make sure you can transfer another import scenario from the same source (test system), you can delete the original Mr. Miller user and transfer the tickets to Mr. Miller (1), an operation that is supported by the ConSol CM Web Client. Then rename Mr. Miller (1) to Mr. Miller. Now, the Mr. Miller user has the transfer key that originated in the import scenario and during the next import there will be no problem.
    The general use case is: The transfer key is created by the ConSol CM system and allows the re-import and/or the update of the configuration data.
  • CM System properties which start with custom- are added (i.e. created) in an installation during import if they did not exist before. In case the custom-property is already present in the importing system, the value is updated, i.e. the imported value is set. This behavior is implemented in CM versions 6.11.0.5 and up. In versions 6.11.0.4 and below, the value was not overwritten.
• If the checkbox Delete existing data has been checked, the entire system is deleted, i.e., all existing data are deleted. All data means:
  • Configuration data
  • Run-time data

  That means if Delete existing data has been selected, it is not possible to preserve anything from the original scenario. Everything is deleted! Only system properties are not deleted.

• Import of runtime data:
  • Export and import of runtime data is designed for the use with test systems or development systems. For data export and import on a large scale, ETL tools have to be used and not the export/import mechanism!
  • If an object already exists (identified by its transfer key) in the target database, the object will by no means be modified by the import, i.e. no fields of the object are added or deleted, and existing fields are not modified. In this way, existing objects (tickets, customers, resources) are protected from being modified accidentally with test data.

The following parameters have to be set for an import operation:

• Import-Archive:
  Enter path and file name of the archive from which the data shall be imported. Alternatively, you can click the Folder button to open the file browser.
• Mode:
  Here you can choose what the import should do if an error occurs:
  • Abort on error
    This mode is recommended for production systems.
  • Skip corrupt data
    This mode is recommended for imports into test systems. It might even be reasonably applied to production systems, because an unexpected error can lead to a corrupt system, but the import continues even if an error occurs. The problem can be probably handled quickly afterwards, whereas a new import might take longer to perform.
    Example: A referenced object is not found during the import of a view which references a queue which cannot be found.
  • Force import of corrupt data
    Choose this mode only if you want to clone a system with corrupt data, e.g., on a development server or if the support team is performing error analysis.

Click on Import afterwards to start the data import.

Runtime data are only imported into the target fields if these fields are empty. If a field contains an entry, this entry will not be overwritten during an import of a scene. Please use ETL (extract - transform - load) operations for export/import of runtime /operating data! This is not a use case for ConSol CM scene export / import.

Configuring System Behavior During Scene Import

The import of the configuration data in a scene is separated into several database transactions. This helps limit memory usage on the database server. However, in case of fatal errors during the import this could result in an inconsistent system state.

A ConSol CM system property can be used to configure the system in a way that all configuration items of a scene import are encapsulated in one large database transaction. Therefore, when enabling this option, a fatal error during import of a configuration item cannot leave the system in an inconsistent state. Rather the whole encapsulating transaction will be rolled back putting the system configuration-wise into the state before the import. The transaction encapsulation does not include localization strings or runtime data which are handled independently of this setting.

Use the ConSol CM system property cmas-core-server, config.import.global.transaction.enabled.

Enabling this transaction encapsulation may result in longer import execution times and higher memory requirements on the database server!

Transformation of User Name and Password Fields During Import into CM 6.11

In ConSol CM version 6.11, the behavior of two customer fields (former data object group fields) has changed:

• The customer field which is annotated with username.
  The user name is now controlled to be unique.
• The customer field which is annotated with password.
  The passwords are only stored as encrypted strings.

Thus, when you import a scenario from a ConSol CM system with a version lower than 6.11 to a system running version 6.11 (or higher), two transformations will be performed automatically. The checkbox Delete existing data for the import operation does not have any influence on this behavior.

• username:
  The customer field which is annotated as usernamewill be used. If several identical user names are found in the customer data, the later ones will be appended by a number like Huber_1 for the second original username Huber and so on. The dialog after the import will inform about these user name changes.
  Please note that user names can be defined as case sensitive in CM versions 6.11 and up. Use the CM system property cmas-core-security, policy.track.username.case.sensitive.
• password:
  The customer field which is annotated as password will be used. The passwords will be stored as encrypted strings using the new mechanism.


Workflow Deployment (for Deployment Error Recovery Only)

Usually, all operations concerning workflow design and deployment are performed using the Process Designer. However, if an error occurs during workflow deployment, you can transfer the tickets that could not be transferred into the new workflow using the following options.

First select the queue(s), then choose the transfer mode:

• Remain at last activity
  The ticket will try to stay at its position in the process:
  • If the activity and scope have not been changed, i.e., no change in position for the ticket.
  • If the activity is no longer present, i.e., the ticket goes as far back in the process as necessary to find the last consistent position in the process.
• Restart process
  The ticket goes back to the START node of the process/workflow.

Please also read the detailed explanation of the workflow deployment process in the ConSol CM Process Designer Manual.
