Page Customization for the Web Client Dashboard

Introduction

The Web Client dashboard is configured using Page Customization.

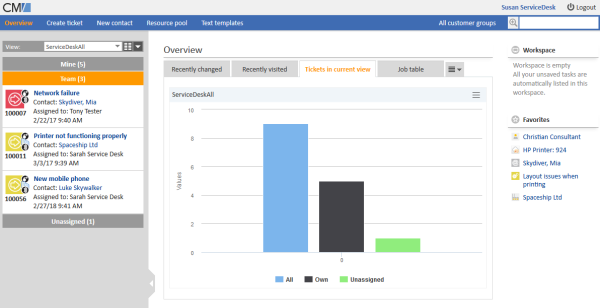

Figure 274: ConSol CM Web Client - Web Client dashboard with several tabs: Open tab with chart widget

The general layout of the welcome page is configured in widgetsGrid / welcomePage. If a correct value is entered in the layout attribute, the dashboard is displayed. If the field is empty, no dashboard is shown.

The value of the layout attribute determines which widgets are displayed and how they are organized on the dashboard. Please see Definition of the Overall Dashboard Layout for detailed information.

After defining the overall layout of the dashboard, you can configure the individual widgets. The following general rules apply:

You can only edit the widgets which are shown on the page when the page customization is opened. If the dashboard is configured in several tabs, you need to open the tab with the desired widget before starting the page customization.
Each widget has a node in the subtree of its widget type, e.g., chartWidget / welcomePage / ticketsInView.
The attributes for each widget type can be either defined for the individual widget (e.g., chartWidget / welcomePage / ticketsInView) or for all widgets of the widget type (e.g., chartWidget or chartWidget / welcomePage). Settings on a deeper level overwrite the settings on an upper level, i.e., settings for individual widgets overwrite the settings for the widget type.

The available settings depend on the widget type. The settings described in General Attributes are available for all types of widgets. Please see the following sections for information regarding the different widgets.

As explained before in section Page Customization each of the four elements is represented by a subtree in the page customization tree. The following figure provides an example page customization tree with subtrees relevant for the Web Client dashboard. A detailed explanation is provided in the following sections.

Please note that when you work with a tabbed dashboard, only the page customization subtree(s) of the active (i.e., currently opened) tab is/are displayed.

Figure 275: ConSol CM Web Client - Page customization subtrees for Web Client dashboard layout

Definition of the Overall Dashboard Layout

The overall layout of the entire Web Client dashboard is defined using the page customization attribute widgetsGrid/welcomePage.

Variant 1: All Widgets Displayed on One Page

Attributes:

layout
This defines the layout of the entire dashboard on the welcomePage based on the following principles:
- A widget is described by its name and its type, separated by a colon, e.g., 'ticketsInView:Chart'. The name for a specific widget must be unique. The following types are available:
  - Calendar
    Widget which displays an integrated Microsoft Outlook calendar, see Attributes for Calendar Widgets
  - Chart
    Widget which displays a chart, see Attributes for Chart Widgets
  - Generic
    Widget which displays HTML content, see Attributes for Generic Widgets
  - News
    Widget which displays news, see Attributes for News Widgets
  - kpi
    Widget which displays KPIs, see Attributes for KPI Widgets
  - RecentChanges
    Widget which displays the recent changes, see Attributes for Recent Changes Widgets
  - RecentlyVisited
    Widget which displays the recently visited objects, see Attributes and Settings for Recently Visited Widgets
  - Table
    Widget which displays a table, see Attributes for Table Widgets
- The type of a widget has to be indicated only at the first appearance of the widget’s name. Afterwards, it can be omitted, e.g., [ticketsInView:Chart, ticketsInView, ticketsInView].
- Each row of the dashboard grid is represented as an array of elements: [x,y,z]. A new widget object will be added to the page customization tree automatically when it is added as value in the layout attribute, e.g., when the value has been [ticketsInView:Chart, ticketsInView] and the value is now [ticketsInView:Chart, ticketsInView, myTickets:Table], another table widget named myTickets will appear in the page customization tree (see figure above) and on the dashboard. In the same way, widgets can be removed from the dashboard - just remove the name and type of the widget in the layout value. After saving and reloading the page all layout changes are available in the tree for further configuration.
- The grid starts with the upper left corner (0,0) and it is built up row after row, e.g., a layout value with two pairs of [ ] brackets will represent two rows as shown in the figure and code shown below.
- null is a reserved key word for an empty cell.
- The widget can occupy multiple adjacent rows and columns.
- The dashboard can be completely disabled in removing the value from the attribute layout.

The following examples show two possible layout configurations and the respective display in the Web Client.

Example 1

Three widgets are displayed, two charts and one table.

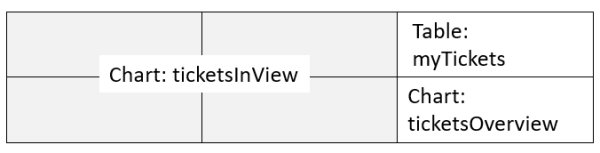

Figure 276: Organization of an example grid of a welcomePage

The value of the respective layout attribute would be:

[ticketsInView:Chart, ticketsInView, myTickets:Table], [ticketsInView, ticketsInView, ticketsOverview:Chart]

Example 2

Four widgets are displayed, two KPI widgets, one chart and one table.

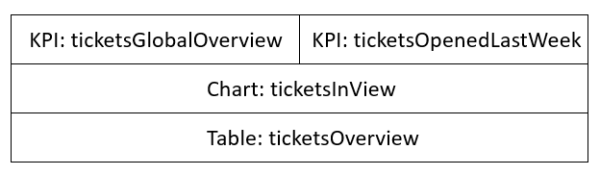

Figure 277: Organization of an example grid of a welcomePage with KPI widgets

The value of the respective layout attribute would be:

[ticketsGlobalOverview:KPI,ticketsOpenedLastWeek:KPI],[ticketsInView:Chart],[ticketsOverview:Table]

Variant 2: Tabbed Widgets

The widgets can also be displayed on tabs. In this case, each widget is displayed on a separate tab. The layout attribute is used for this configuration.

Variant 2.1: Using Explicit Headers

The following notation for the value of the layout attribute sets an explicit header for each tab, i.e., the browser locale is not taken into consideration.

[tabName:'Tickets in current view',widgets:[ticketsInView:Chart]],[tabName:'Job table',widgets:[ticketsOverview:Table]]

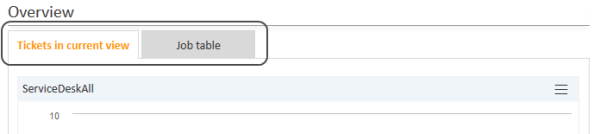

Figure 278: Setting explicit headers as tab titles

Variant 2.2: Using Localized Headers

The following notation for the value of the layout attribute sets localized headers, i.e., the header depends on the browser locale. In the example, English and German headers are specified. If the browser locale is not set, the default CM locale is used.

Localized Headers, Example 1

[tabName:'Tickets in current view',i18n:{en:'Tickets in current view',de:'Tickets in der aktuellen Sicht'},widgets:[ticketsInView:Chart]],[tabName:'Job table',i18n:{en:'Job table',de:'Tabelle Jobs'},widgets:[ticketsOverview:Table]]

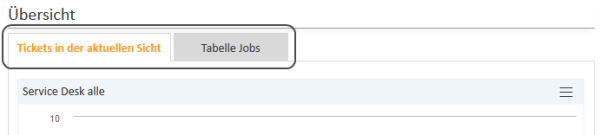

Figure 279: Using localized headers (in the given example en and de, displayed: de)

Localized Headers, Example 2

An example of a rather complex dashboard layout with three tabs is shown in the following code and figure.

Value for the layout attribute in widgetsGrid/welcomePage:

[tabName:'Open tickets global overview',i18n:{en:'Open tickets global overview',de:'Übersicht offene Tickets'},widgets:[ticketsGlobalOverview:KPI,ticketsOpenedLastWeek:KPI]],[tabName:'Tickets in current view',i18n:{en:'Tickets in current view',de:'Tickets in der aktuellen Sicht'},widgets:[ticketsInView:Chart]],[tabName:'Job table',i18n:{en:'Job table',de:'Tabelle Jobs'},widgets:[ticketsOverview:Table]]

Display in the Web Client, with EN browser locale:

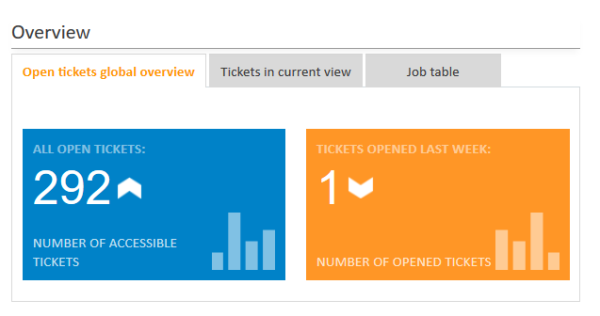

Figure 280: ConSol CM Web Client: tabbed dashboard with two KPI widgets on the first tab

Configuration of Widgets

Configuration Script for Widgets

Most of the widgets have a configuration script. This script is a Groovy script which is stored in the Scripts section of the Admin Tool and is referenced by its name. The script has to be of type Widget. The type used in previous versions, Page customization, will still work. Select the widget in the PCDS and enter the script name.

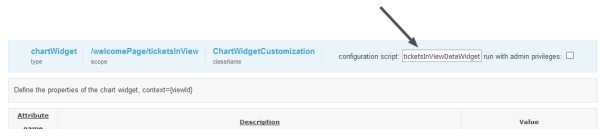

Figure 281: ConSol CM Web Client - Script definition for a chart widget

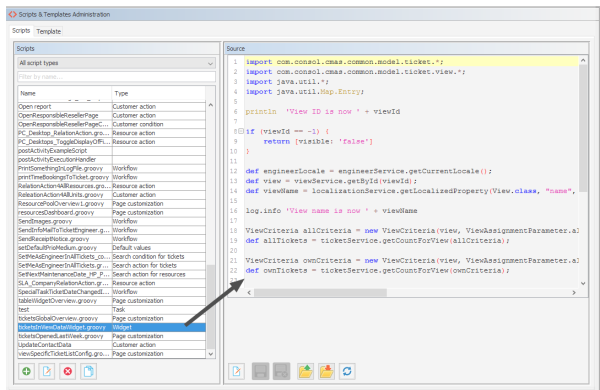

Figure 282: ConSol CM Admin Tool - Admin Tool script for a widget of the Web Client dashboard

The configuration script of a widget is the place where the statements are defined which retrieve the required data from the CM system and where the widget layout is defined. The execution of this groovy script is a core part of the customization. The script must return a map of variables which correspond to the defined widget properties.

An incorrect script does not provide a data structure which can be displayed by the Web Client Dashboard. Since the dashboard is displayed on the overview page which is the start page, the Web Client will not start in those cases! Disable or comment out the script to start the Web Client again.

The script overwrites the configuration data provided in the page customization. The values are not merged! The script will thus override any widget attribute value set in the graphical customization, so please make sure that the desired attribute is not set within the script if you want to use the graphical page customization for attribute setting.

A script which is associated with a widget is usually executed with user (= engineer) permissions, e.g., the standard chart widget shows a graphical representation of the selected view. However, sometimes values have to be used which are not available in the engineer context, e.g., escalated tickets (of all engineers) in a certain queue. In order to execute a script with admin permissions, select the check box run with admin privileges. Please keep in mind that the results of the Java or Groovy methods which retrieve the data will vary depending on the context. For example, the method ticketService.getAll() will return only tickets for which the current engineer has at least read permissions, but will return all tickets in the system when executed as admin.

The chart representation in the Web Client dashboard is based on the Highcharts library. Thus, for chart widgets, the Admin Tool script has to return a HashMap containing the attributes which should be set (see return statement in the code example below which uses the attributes series, visible, chart, title, tooltip, and localization). A detailed explanation of all attributes and the respective hyperlinks is provided in the section Attributes for Chart Widgets.

The table representation in the Web Client dashboard is based on the Datatables library. Thus, for table widgets, the Admin Tool script has to return a HashMap containing the attributes which should be set. Please see section Attributes for Table Widgets.

The KPI representation in the Web Client dashboard is based on the jquery-kpiwidget library. For KPI widgets, the Admin Tool script has to return a HashMap containing the attributed which define the KPI representation. For a detailed explanation, please refer to the section Attributes for KPI Widgets.

Very complex scripts can decrease system performance!

The following example shows the script ticketsInViewDataWidget.groovy which is provided with a standard ConSol CM distribution.

import com.consol.cmas.common.model.ticket.*;

import com.consol.cmas.common.model.ticket.view.*;

import java.util.*;

import java.util.Map.Entry;

if (viewId == -1) {

return [visible: 'false']

}

def engineerLocale = engineerService.getCurrentLocale()

def view = viewService.getById(viewId)

def viewName = localizationService.getLocalizedProperty(View.class, "name", viewId, engineerLocale)

ViewCriteria allCriteria = new ViewCriteria(view,

ViewAssignmentParameter.allTickets(),

ViewGroupParameter.allTickets(),

new ViewOrderParameter())

def allTickets = ticketService.getCountForView(allCriteria)

ViewCriteria ownCriteria = new ViewCriteria(view,

ViewAssignmentParameter.allTickets(engineerService.getCurrent()),

ViewGroupParameter.onlyOwnTickets(),

new ViewOrderParameter())

def ownTickets = ticketService.getCountForView(ownCriteria)

ViewCriteria unassignedCriteria = new ViewCriteria(view,

ViewAssignmentParameter.allUnassignedTickets(),

ViewGroupParameter.onlyUnassignedTickets(),

new ViewOrderParameter())

def unassignedTickets = ticketService.getCountForView(unassignedCriteria)

def data = []

data.add("{name: _('all'), data:[${allTickets}]}" as String)

data.add("{name: _('own'), data:[${ownTickets}]}"as String)

data.add("{name: _('unassigned'), data:[${unassignedTickets}]}"as String)

return [series: "[${data.join(',')}]" as String,

visible: 'true',

chart: "{type: 'column'}", title: "{text: '${viewName}'}" as String,

tooltip:"{headerFormat:''}" ,

localization:"de: {all:'Alle',own:'Eigene',unassigned:'Unzugewiesene'},"+ "en: {all:'All', own:'Own', unassigned: 'Unassigned'}"];

Code example 28: Standard ConSol CM chart widget script ticketsInViewDataWidget.groovy

The following chart is defined by the script above. For a detailed explanation, please refer to the section Example of a Chart Widget.

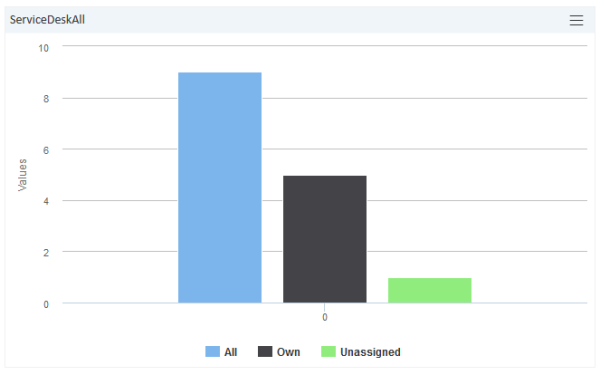

Figure 283: ConSol CM Web Client - Example chart widget
